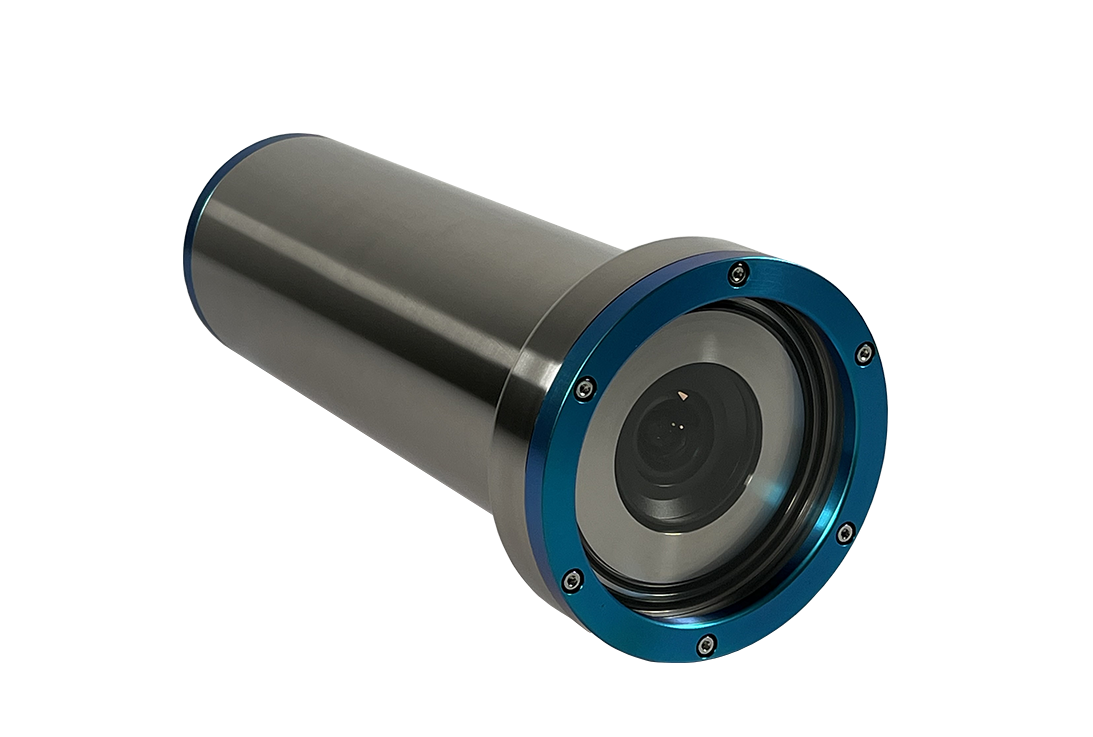

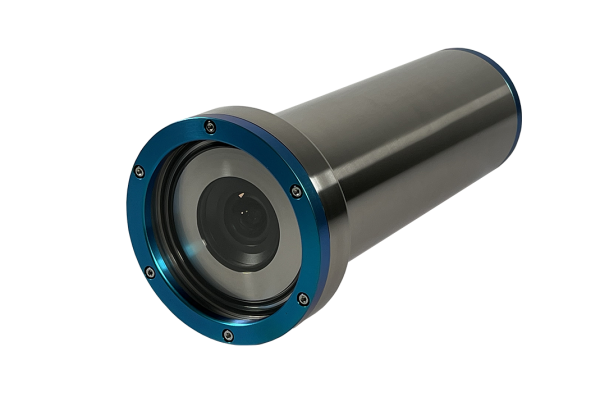

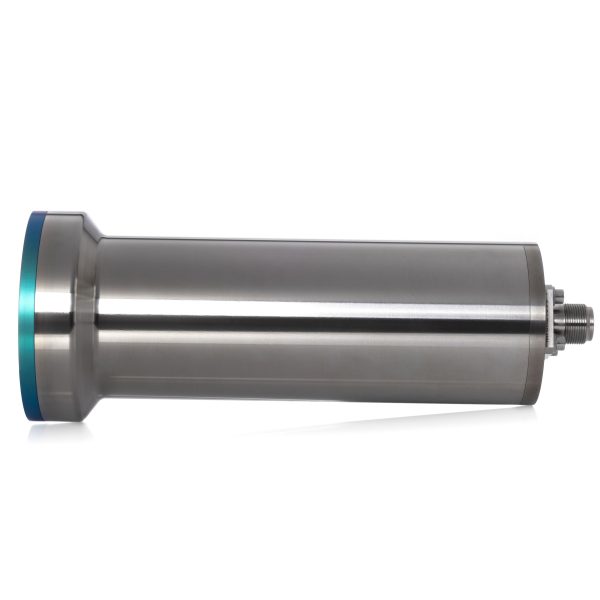

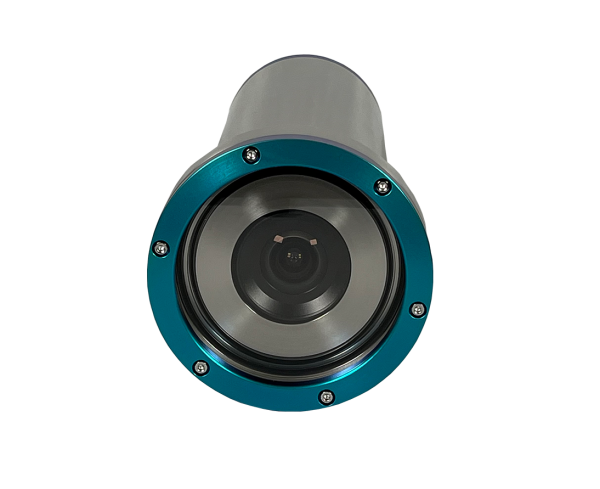

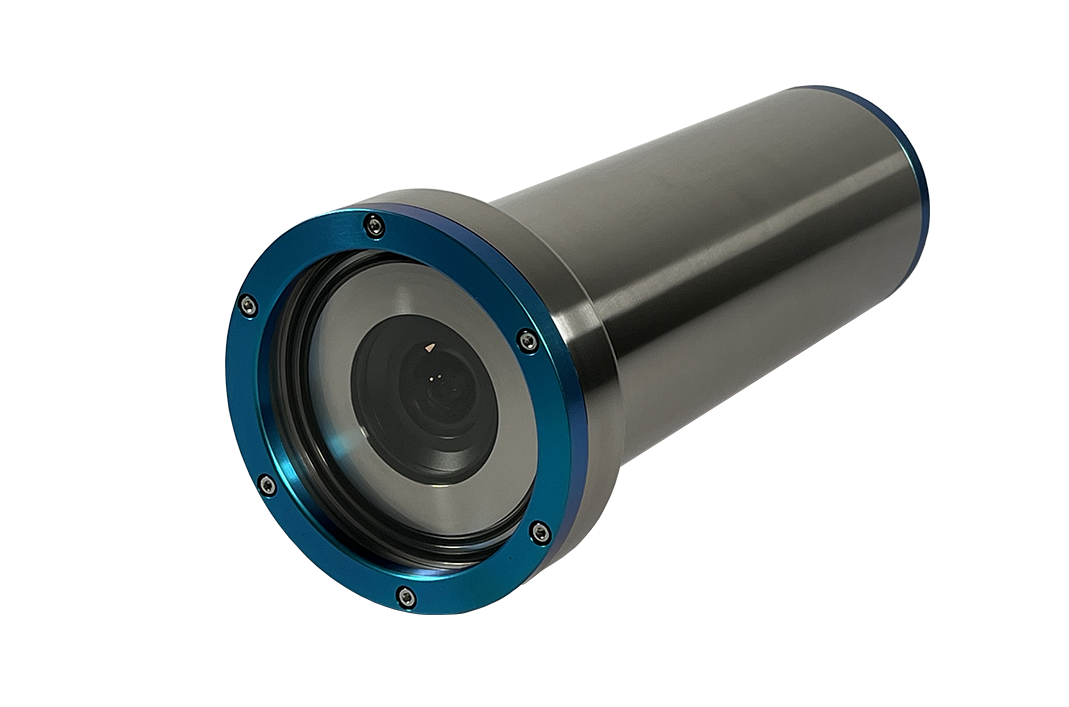

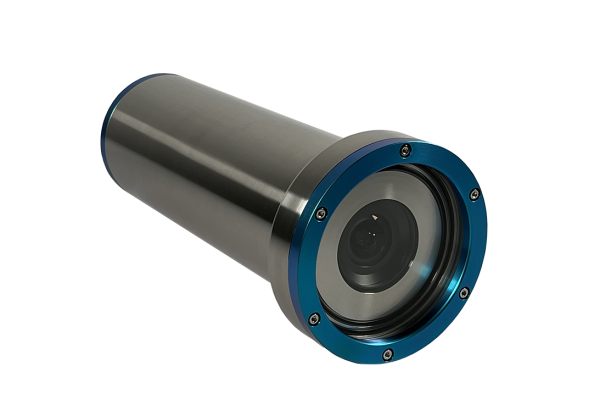

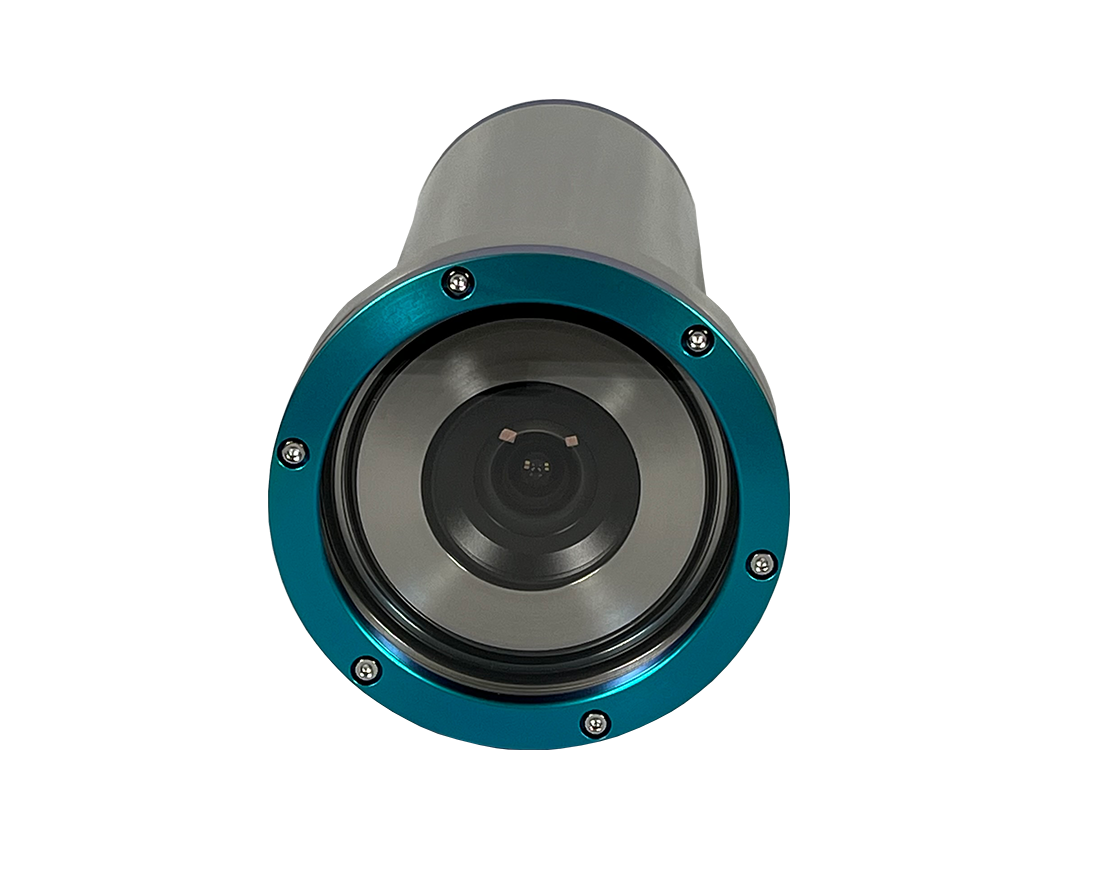

OrphieCam 3000 Subsea Camera

i2S OrphieCam 3000

Engineered for extremes, the OrphieCam 3000 redefines underwater visibility in the most demanding subsea environments.  With real-time video streaming capabilities at depths of up to 3000 meters, this high-definition, network-ready IP camera delivers unmatched clarity where conventional systems fail. Perfect for inspections in waters with high sediment rates and murky conditions where observation is critical and difficult. Offering real-time video streaming with a latency of less than 130 ms and low bandwidth, this camera meets the needs of subsea inspection professionals.

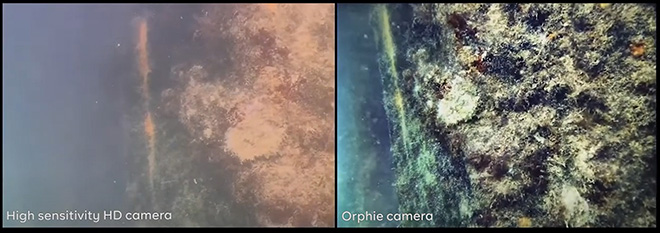

The i2S Orphie cameras provide unique patented technology that enhances underwater imaging systems, making operations safer and more efficient.  These capabilities increase viewing distance by a factor of three, allowing for better-quality inspection in less time.

Features

• Low Latency
• Depth Rated 3000m
• Real-time video streaming view

Technical Specifications

• 2/3″ CMOS Color Sensor
• Optical Resolution: 1080p
• Frame Rate: 25fps
• Latency: ~150ms
• FOV: Air: 95° (Dia) x 82° (H) x 66° (V)
• FOV: Water: 67° (Dia) x 59° (H) x 48° (V)
• Depth Rating: 3000m (9842 feet)
• Housing: Titanium
• Dimensions w/o Connector: Length = 275.5mm, Diameter = 116mm
• Weight: Air: 4.5kg, Water: 2.5kg

Optical & Video Specifications

• Input Voltage: 12-32 VDC
• Power: 13W maximum
• Standard Connector: Glenair G55 Aluminum (others on demand)
• Data Transmission: Ethernet 100BASE-T (100Mbit/s)
• Bandwidth: 12Mbits/s maximum
• Operating Temperature: 0° to 45° Celsius

ORPHEO

Software for viewing, setting parameters, and controlling Orphie cameras.

Orpheo is the visualization, parameter setting, and control software for all products in the Orphie range. Easily configure your Orphie products to meet your specific needs and optimize the performance of your equipment.
