SS402 Compact Color High Resolution Deep Sea Camera

Sidus Solutions’ SS402 is a robust inspection tool designed for harsh deep sea conditions. It is a 600 TVL color camera module employing a 1/3″ Sony Super HAD CCD imaging sensor. Image is presented in wide dynamic range. The video output is provided in NTSC or PAL formats, with a standard 3.6 mm lens. The corrosion resistant anodized aluminum housing is made to endure high pressures and will provide years of quality service.

Download Data Sheet

Categories: ,
Electrical:
Horizontal Resolution: 600 TV Lines (NTSC)
Sensitivity: 0.05 lux
Sensor Type: 1/3” Sony Super HAD CCD II
Signal to Noise: >50 dB
Power Input: 9-36 VDC / 100mA (max)
Video Outputt: 1.0 Vp-p, 75 ohm

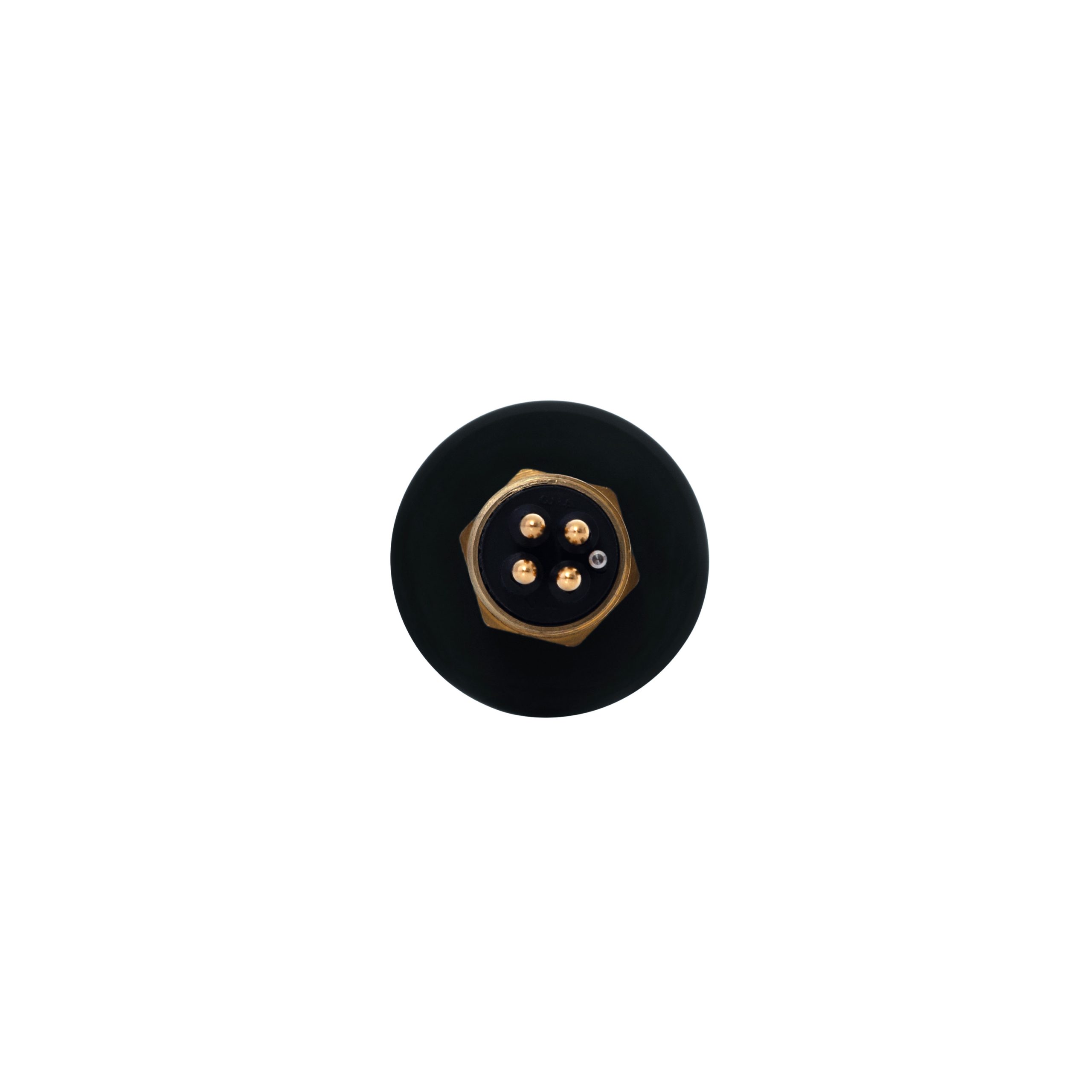

Connector: Customer selectable – Seacon Brantner is standard

Environmental:
Operating Depth: Up to 3,000 m (10,000 ft)
Temperature Range: -10˚C to +50˚C (+14˚F to +122˚F) operating
-20˚C to +60˚C (-4˚F to +140˚F) storage
Housing Material Anodized 6061-T6 Aluminum
Window Material: Optical grade acrylic – Sapphire windows available
O-Ring Material: Buna
Optical:

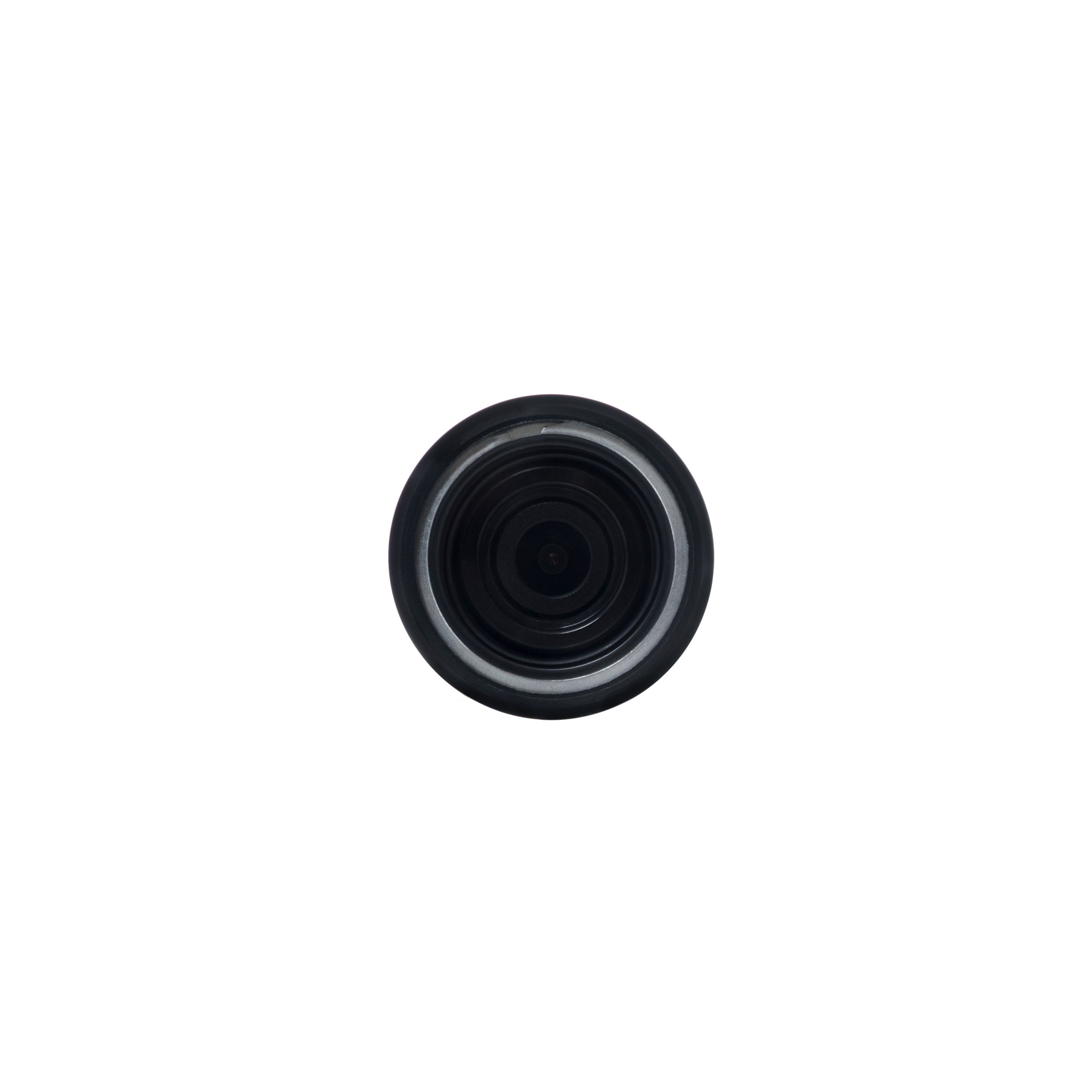

Lens: 3.6mm – See datasheet for more lens options
Field of View: 69˚ diagonal in water, 92˚ in air
Iris Control: Fixed
Focus Control: Fixed
Working distance: 12″
Mechanical:

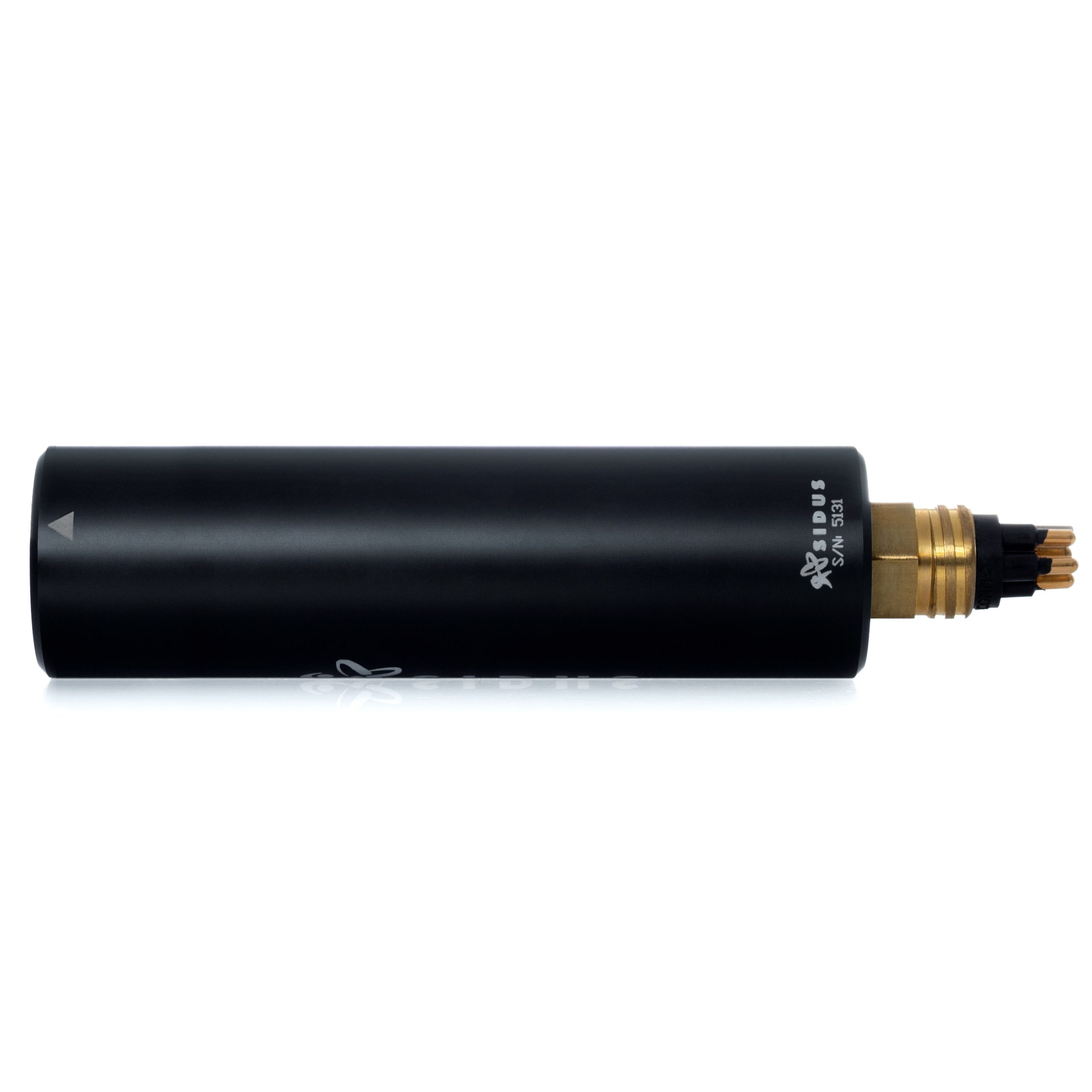

Dimensions: 1.5 in diameter x 5.3 in length (38mm x 135mm)
Weight in Air: 15 oz  (0.43 kg)
Weight in Water: 5 oz (0.14 kg)
