SS550 DarkCrystal CAM Subsea Camera – HDR IP Network or CVBS Analog

Name: SS550 DarkCrystal CAM Subsea Camera - HDR IP Network or CVBS Analog
SKU: 151
Availability: InStock

Designed to operate at an excellent lighting efficacy ration (lumens/watt), the SIDUS SS550 DarkCrystal CAM Subsea Camera maximizes the number of lumens to power consumption, up to 200 lumens/watt. A true game-changer in subsea video capture, this camera is available as a high performance HDR IP or CVBS Video or bulkhead version.

Full lighting control may be accomplished using power cycling, serial port, discrete analog inputs, discrete digital inputs, or tristate controls. The SS550 is NDAA compliant.

Add to Quote

Datasheet

Please use the form below to request a quote:

Company

This field is for validation purposes and should be left unchanged.

This field is hidden when viewing the form

Product Name*

First Name*

Last Name*

Email*

Phone*

Company*

Company Address*

Street Address City State / Province / Region Country

Company Phone*

Company Website

Message (optional)

Quantity

Please enter a number greater than or equal to 1.

CAPTCHA

Categories: Cameras, New Products, Subsea Cameras Tags: Camera with Integrated LED lighting, Depth Rated 3000 meters, Depth Rated 6000 meters, HBLED, High Dynamic Range, High Performance Camera, IR Illumination, Low Latency Video Output, Network Ready IP Camera, Subsea Camera, Underwater Video, Wide Viewing Angle

SS550

SS550 DarkCrystal CAM Subsea Camera

With SIDUS’ improved video quality, the SS550 DarkCrystal CAM Subsea Camera has numerous features never before available in a compact practical light combo. It is available as an HDR IP Network camera or CVBS Analog camera. The SS550 is a small, affordable, yet rugged subsea self-lighted camera designed to fit where traditional cameras cannot go.

The HDR IP Network camera version offers three simultaneous video streams supported at different resolutions, frame rates, and compression qualities. Time stamp and synchronize to a network time server with up to 512GB of onboard recording for video (approximately 2 days or more at highest quality) or still images. Video may be H.264 or MJPEG encoded at video bit rates of up to 20Mpbs.

Dimmable LED Light

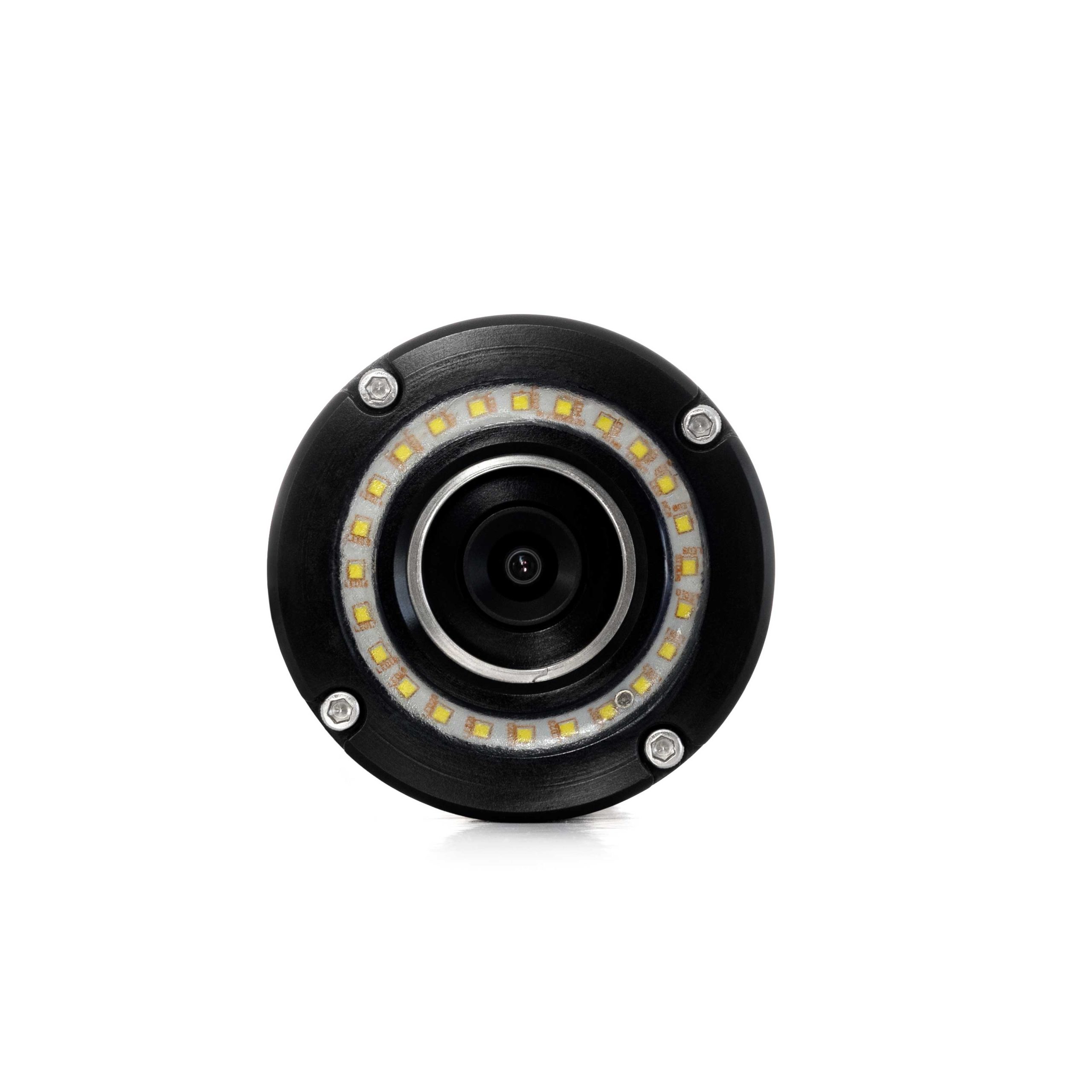

The dimmable HBLED light can output up to 2500 lumens using SIDUS’ unique high-count LED circuitry to ensure uniform illumination over the entire field of view with minimal shadows. The DarkCrystal CAM design prevents unwanted interference between the HBLEDs and the camera by minimizing reflections onto the camera lens in comparison to other existing similar products. An advanced hybrid dimming algorithm gives the user the option of selecting various HBLED dimming modes. Analog dimming minimizes acoustic noise for applications using nearby sonars and acoustic ranging devises. A combination of analog and PWM dimming provides an incredible dimming range of up to 30,000:1.

SS550 DarkCrystal CAM Subsea Camera

Features

Resolution: 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×786, 640×480,320×240
Lens: 2.8mm, fixed focus (100mm ~ infinity
Excellent Visibility: 68° Dia FOV Flat Port, Low Distortion Lens (19:9 aspect ratio)
Storage: 256GB (SDHC), (Micro SD Card), 512GB (optional)
Depth rated to 3,000m
HD IP Network, CVBS ANALOG and Bulkhead versions
Designed for long- or short-term deployment applications
Low Latency Video Output: IP 1080p30
Exceptional Video Quality: High Sensitivity and High Dynamic Range (HDR)
Video compression: H.264, MJPG; 3 simultaneous streams, independent frame rate & bandwidth control for each stream
Full Camera and LED controls

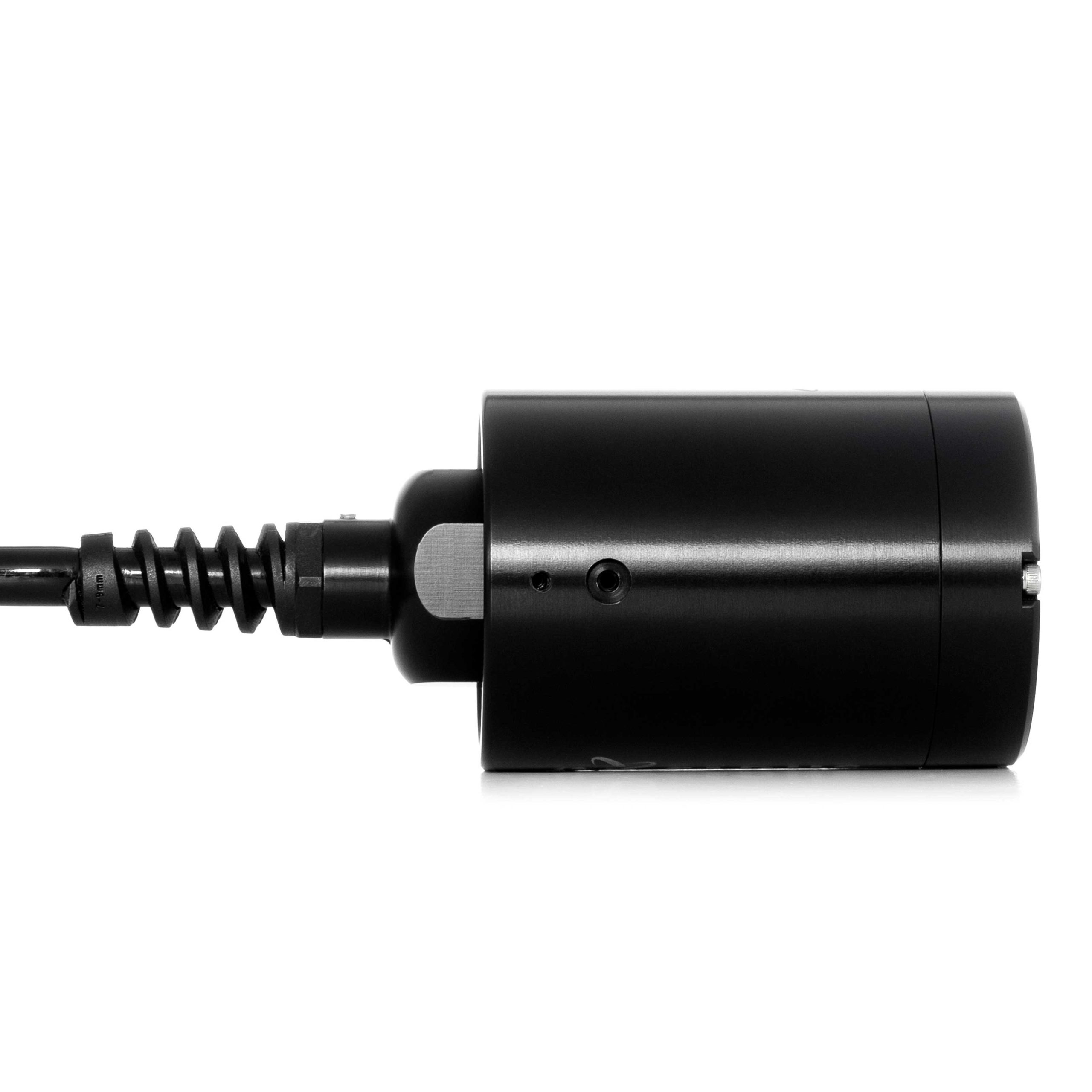

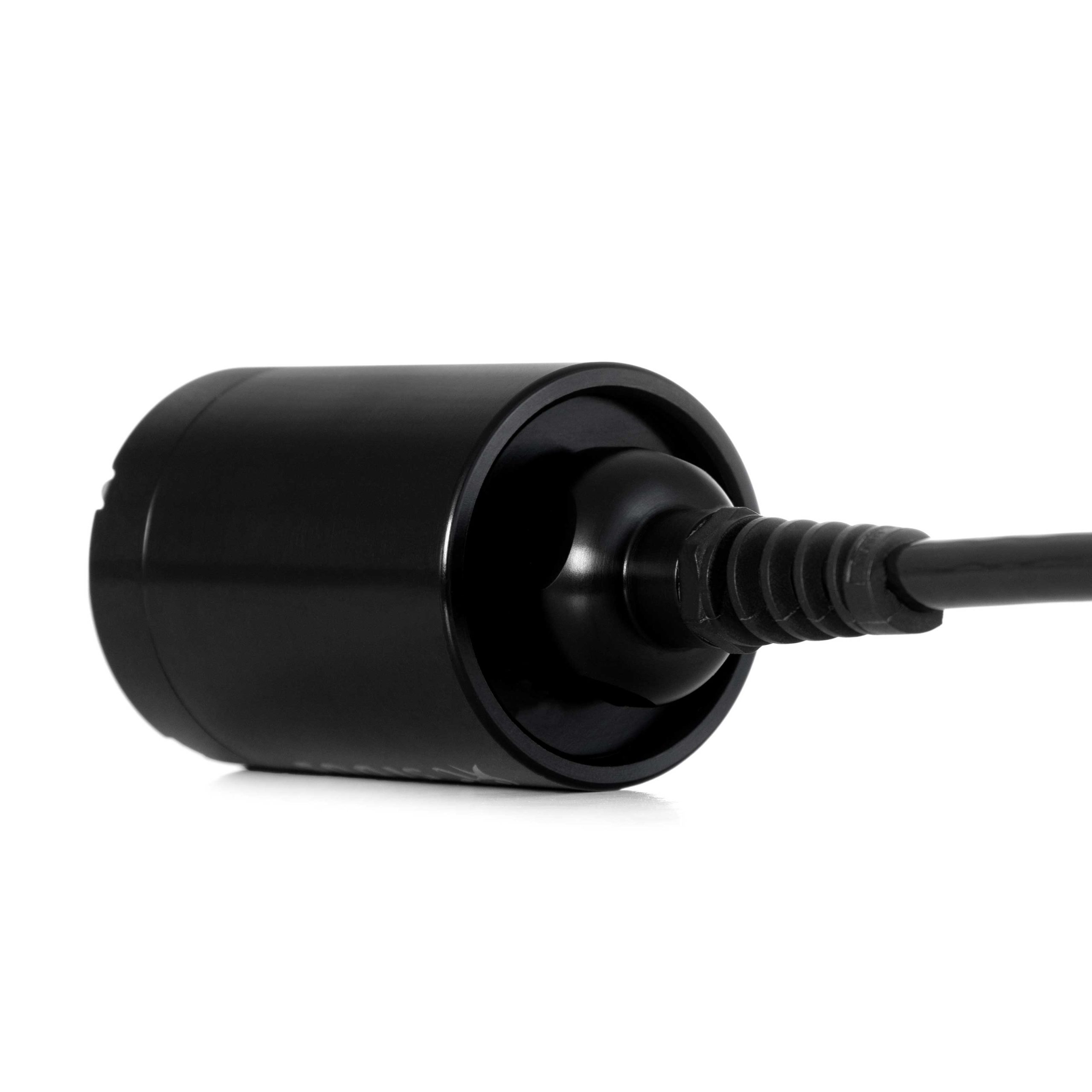

Integral in-line cable for simplified system integration
Power compatibility: 9-36VDC Power Supply
NDAA Compliant
ONVIF Compatible and Onboard Recording (IP Version only)

The SS550 is a feature-rich, low-latency streaming, HDR IP camera that has comparable video specifications that you can change on the fly over the web interface. The password-protected web interface is compatible with secure web browsers like Google Chrome. Video resolution, sensitivity, and dynamic range are all much improved over existing products.

A high-quality sapphire port and aluminum housing allow operations down to 3,000 msw for a wide range of applications. With its flexible integrated cable, the SS550 is ideal for tight spots, such as small ROV pan & tilts with very low torque capability.

For more information on the SS550 DarkCrystal CAM Series Subsea Camera assembly specifications, download the datasheet here: SS550 Datasheet
