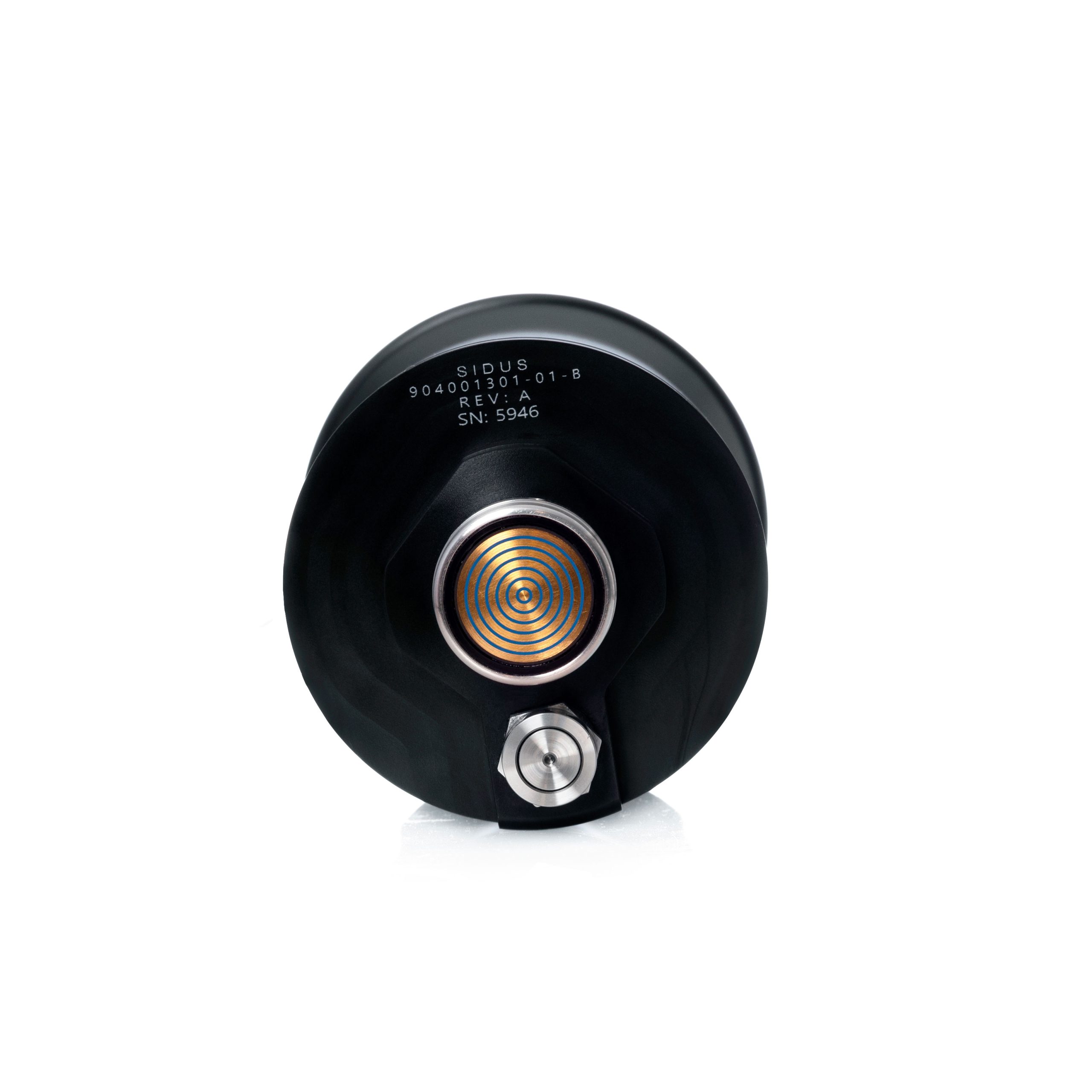

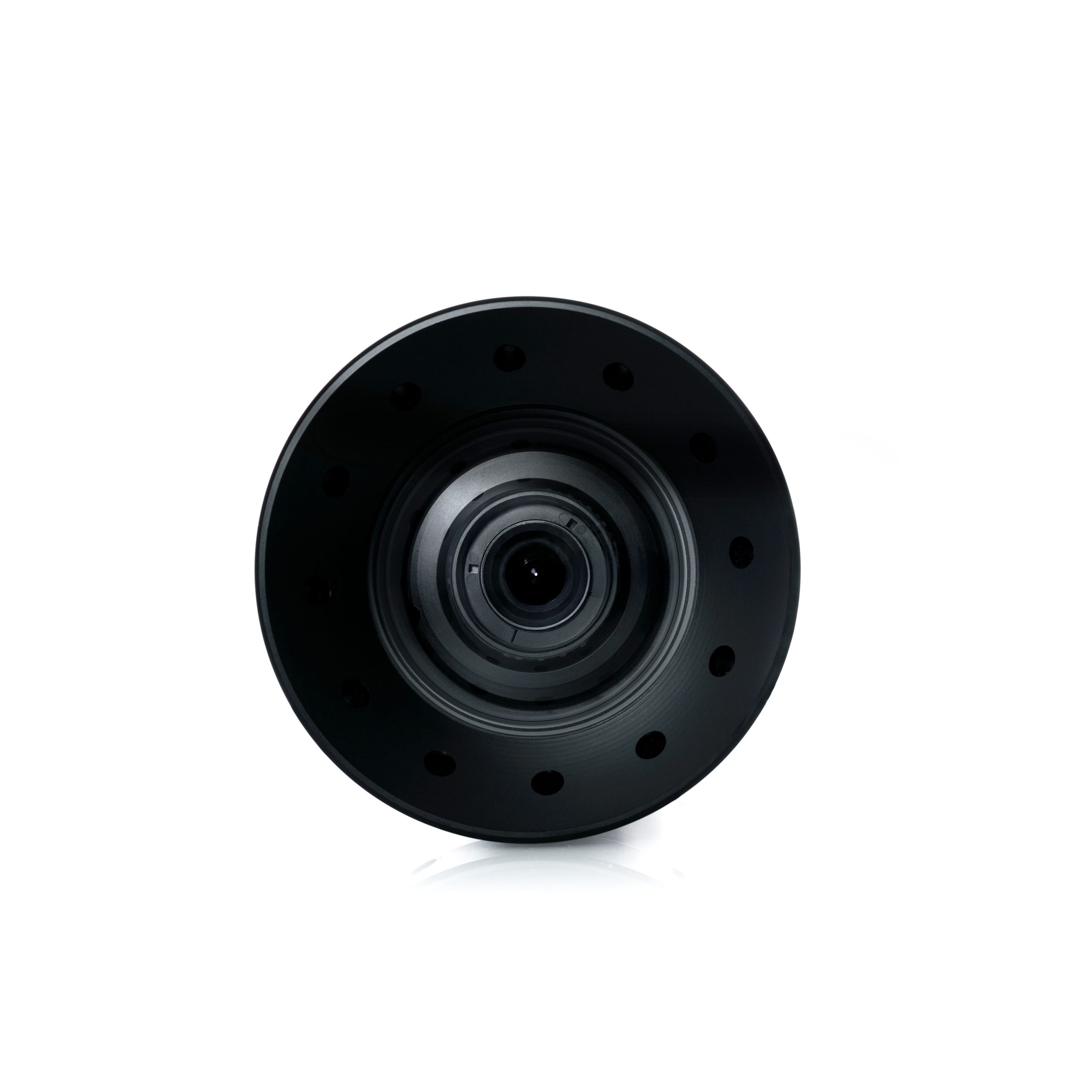

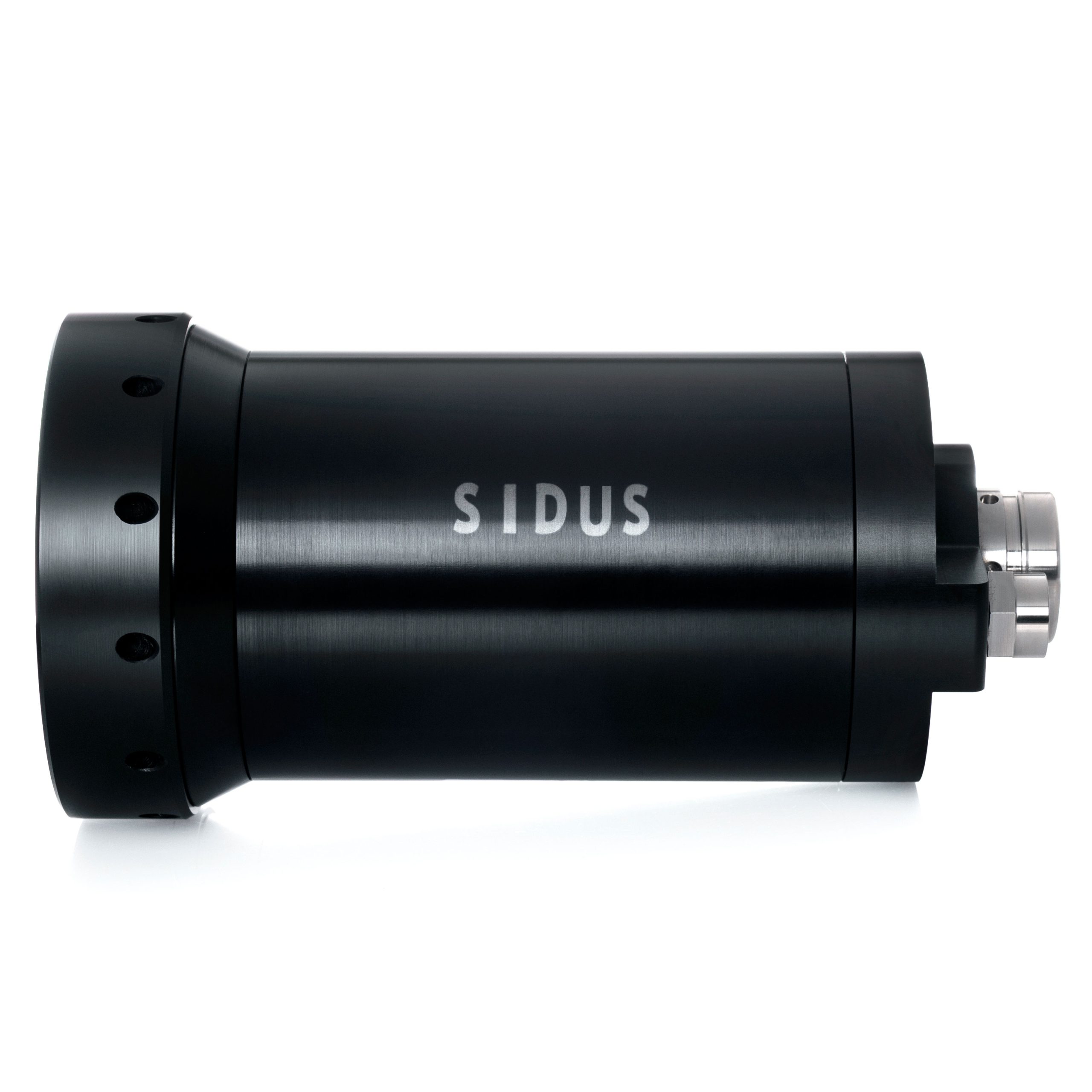

SS425 High Resolution, Optically Corrected Low Light B&W Camera
The SS425 is a high resolution, low light camera with Video output in EIA or CCIR formats, deliverable over an internal, remotely adjustable long-line amplifier.
Features
- 570 TV Lines (EIA/CCIR)
- Minimum illumination of 0.0001 lux
- Auto focus and auto iris
- Depth Rated 3000m
|
Electrical:
|
|
| Horizontal Resolution: | 570 TV Lines (EIA/CCIR) |
| Sensitivity: | 0.0001 lux (F1.4) |
| Sensor Type: | 1/2” Interline transfer CCD |
| Signal to Noise: | >50 dB |
| Power Input: | 12-26 VDC / 400mA (max) |
| Video Output: | 1.0 Vp-p, 75 ohm |
| Connector: | Customer selectable – Seacon Brantner is standard |
| Environmental: | |
| Operating Depth: | Up to 10,000 ft (3000 m) |
| Temperature Range: | -10˚C to +50˚C (+14˚F to +122˚F) operating |
| -20˚C to +60˚C (-4˚F to +140˚F) storage | |
| Housing Material: | Anodized 6061-T6 Aluminum |
| Window Material: | Optical grade acrylic |
| O-Ring Material: | Buna |
| Optical: | |
| Lens: | 3.8mm F0.8-F360C |
| Field of View: | 108˚ diagonal in water |
| Iris Control: | Automatic |
| Focus Control: | Fixed |
| Working distance: | 20cm to infinity in water |
| Mechanical: | |
| Dimensions: | 4.0 in diameter x 8.2 in length (102mm x 208mm) |
| Weight in Air: | 5.6 lbs (2.5kg) |
| Weight in Water: | 2.0 lbs (0.9kg) |
Sidus Solutions’ SS425 is a high resolution, low light sensitive black & white underwater camera system enabling visibility in conditions with a minimum illumination of 0.0001 lux. Depth rated up to 10,000 ft (3000 m).
The system was upgraded as a result of breakthroughs in low light camera technology. Video output can be provided in EIA or CCIR formats and can be delivered over an internal, remotely adjustable long-line amplifier.
Featuring a hard anodized aluminum housing, the SS425 has been designed to handle the demands of the most rigorous and prolonged industrial deepwater applications.
