OrphieScaph Divers Tool

Name: OrphieScaph Divers Tool
SKU: 13460
Availability: InStock

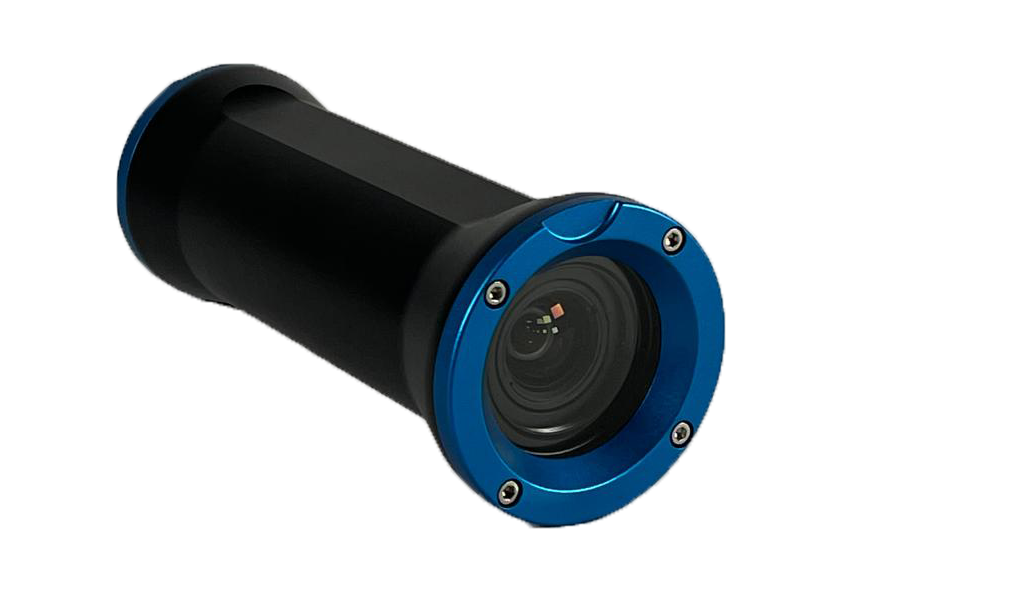

Specially designed to accompany divers on all their missions with a depth rating of 300m, the OrphieScaph is a compact camera that integrates Orphie technology and meets the specific requirements of professional diving. The camera offers advanced underwater imaging and operates in low light conditions.

An ally of divers in turbid waters, factory-set focus provides clear imaging from 20cm to approximately 10m underwater. Benefit from advanced imaging capabilities that enhance clarity, contrast, and detail in underwater footage.

Add to Quote

Please use the form below to request a quote:

URL

This field is for validation purposes and should be left unchanged.

This field is hidden when viewing the form

Product Name*

First Name*

Last Name*

Email*

Phone*

Company*

Company Address*

Street Address City State / Province / Region Country

Company Phone*

Company Website

Message (optional)

Quantity

Please enter a number greater than or equal to 1.

CAPTCHA

Categories: Cameras, Subsea Cameras Tags: Color Camera, Color Zoom Camera, Depth Rated 300 meters, Depth Rated 300m, High Definition, Low Latency IP Streaming, Low Light, Network Ready IP Camera, Power over Ethernet, Remote Zoom, Underwater Camera

OrphieScaph

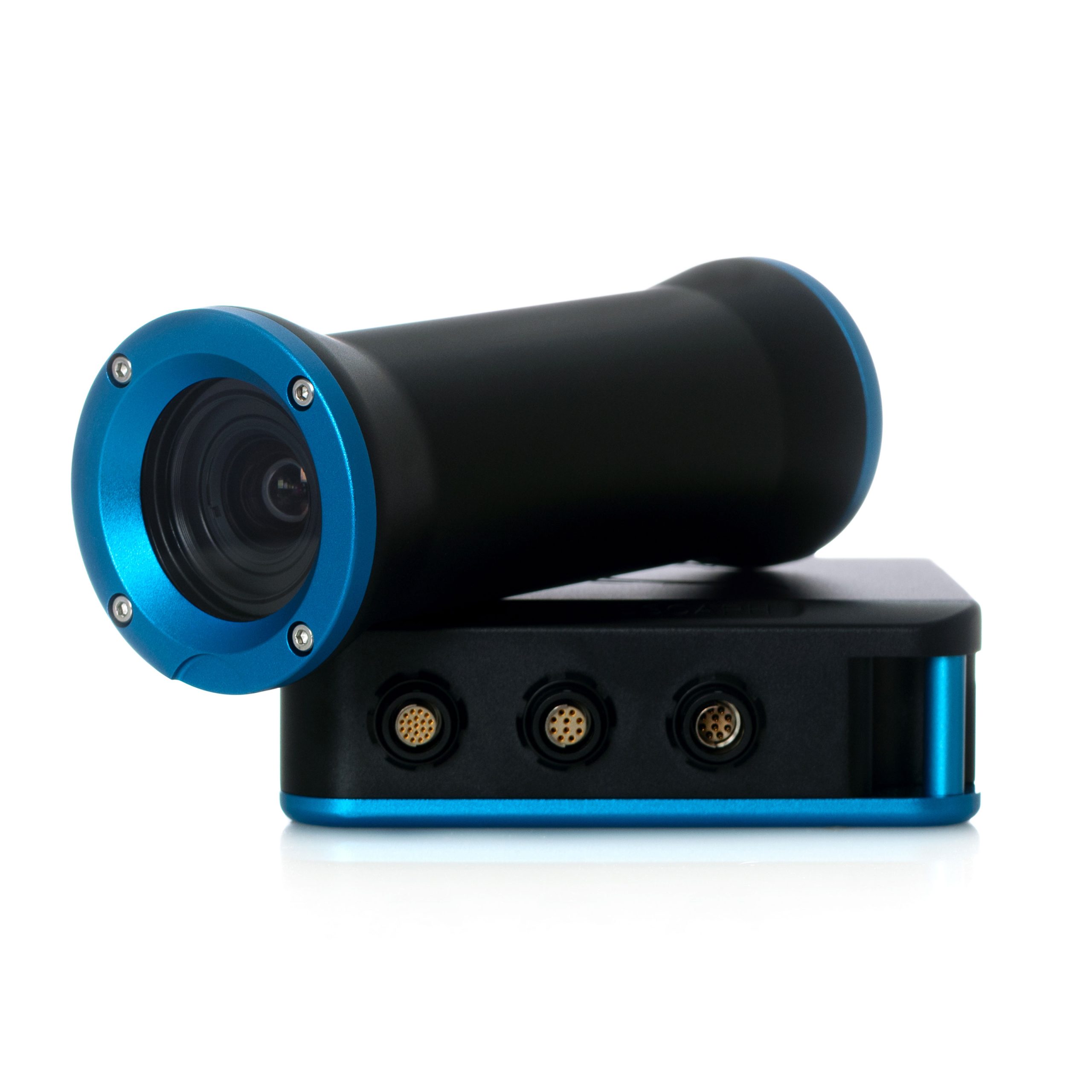

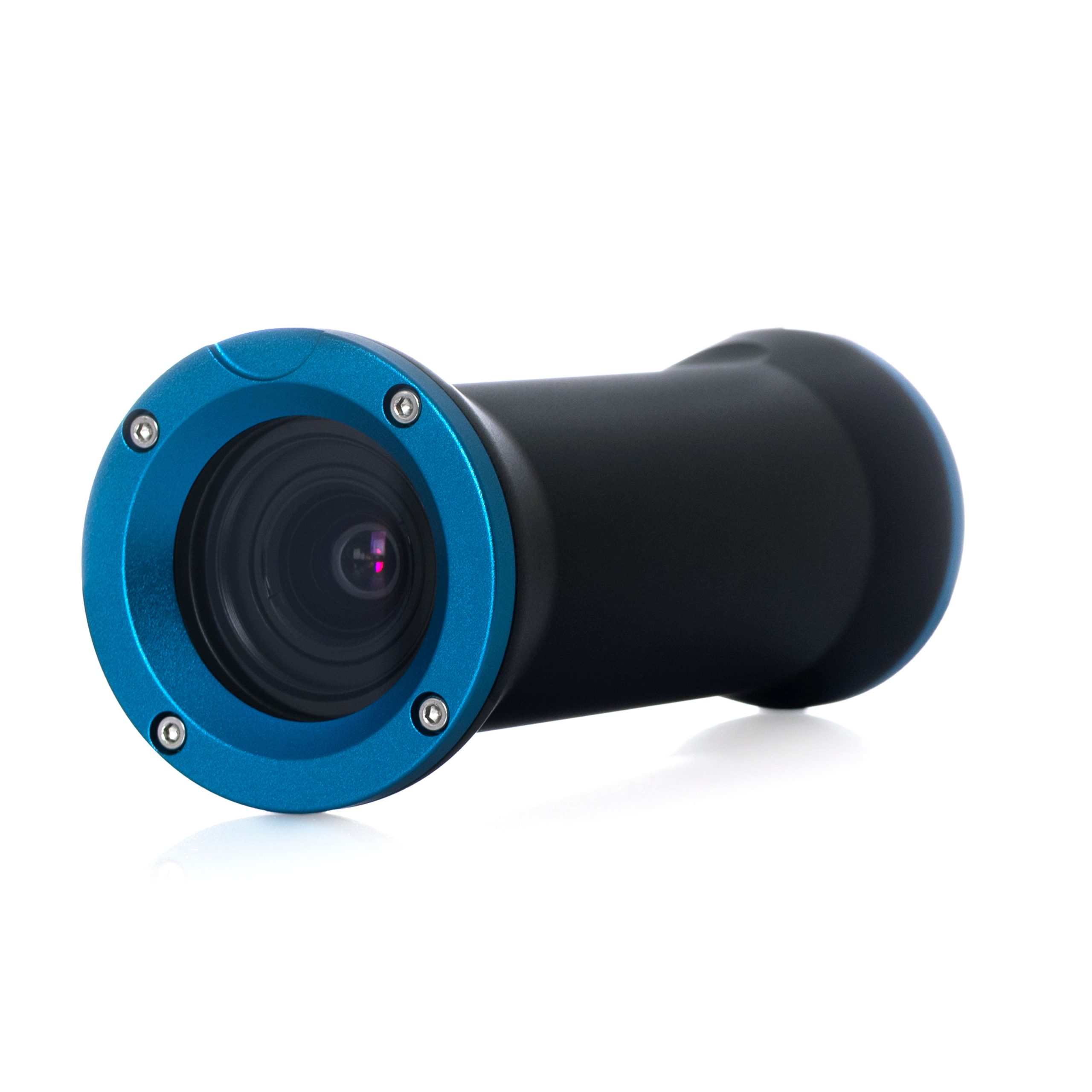

OrphieScaph Divers Tool

The OrphieScaph is an undisputed divers tool that offers a compact camera integrated with Orphie technology, meeting the specific requirements of professional diving on environmental missions down 0-300m and in turbid waters. The camera operates in low light conditions. At a certain depth, sunlight can no longer penetrate the water, and darkness reigns. When paired with a subsea LED light, this camera’s underwater capabilities shine in absolute darkness.

Fields of application include hull inspections, mine clearance, infrastructure monitoring, structure monitoring, wind turbine inspection, and depollution projects.

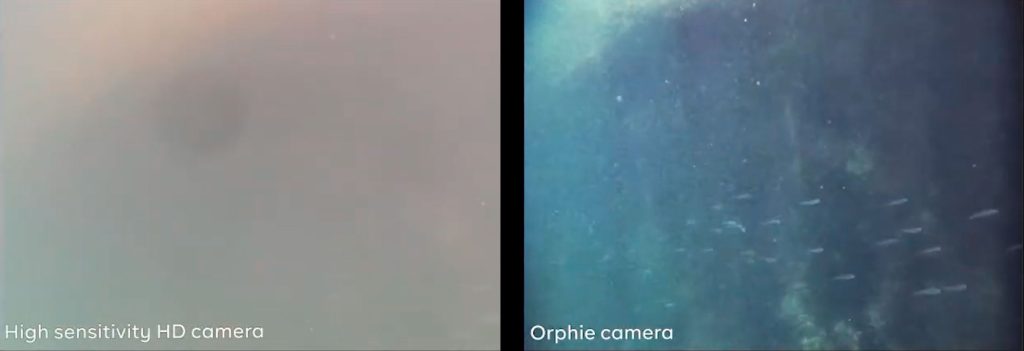

i2S OrphieScaph vs other cameras example

OrphieScaph Divers Tool

Features

Low Latency
Depth Rated 300m
Real-time video streaming view
Digital zoom, snapshot, and record (record your observation and intervention videos and save the images for your inspection reports. )

Technical Specifications

2/3″ CMOS Color Sensor
Optical Resolution: 1080p
Frame Rate: 25fps
Latency: ~150ms

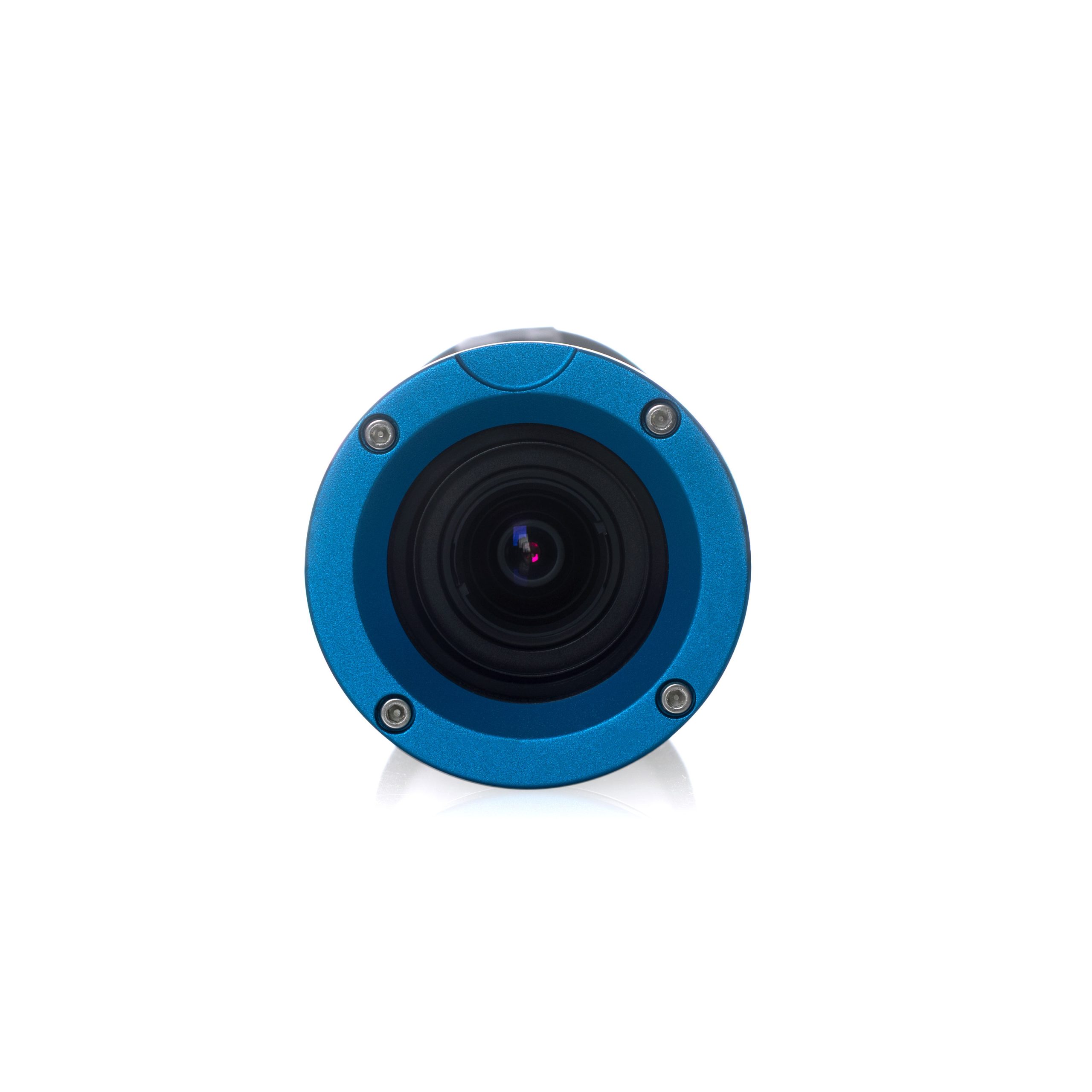

FOV: Air: 86° (Dia) x 75° (H) x 58° (V)
FOV: Water: 62° (Dia) x 54° (H) x 40° (V)
Depth Rating: 300m (984 feet)
Housing: Hard Anodized Aluminum

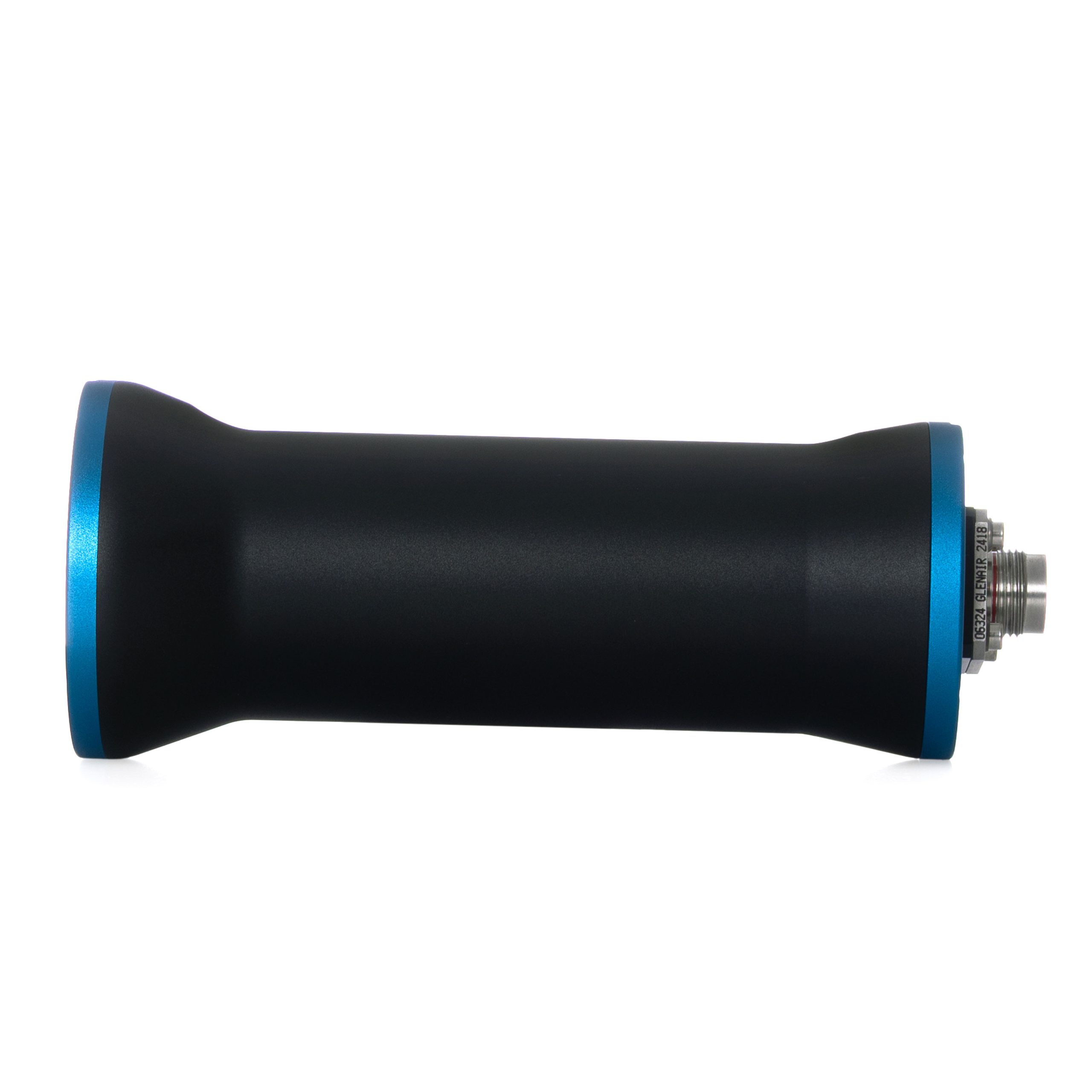

Dimensions w/o Connector: Length = 163mm, Diameter = 72mm
Weight: Air: 750g
Weight: Water: 165g

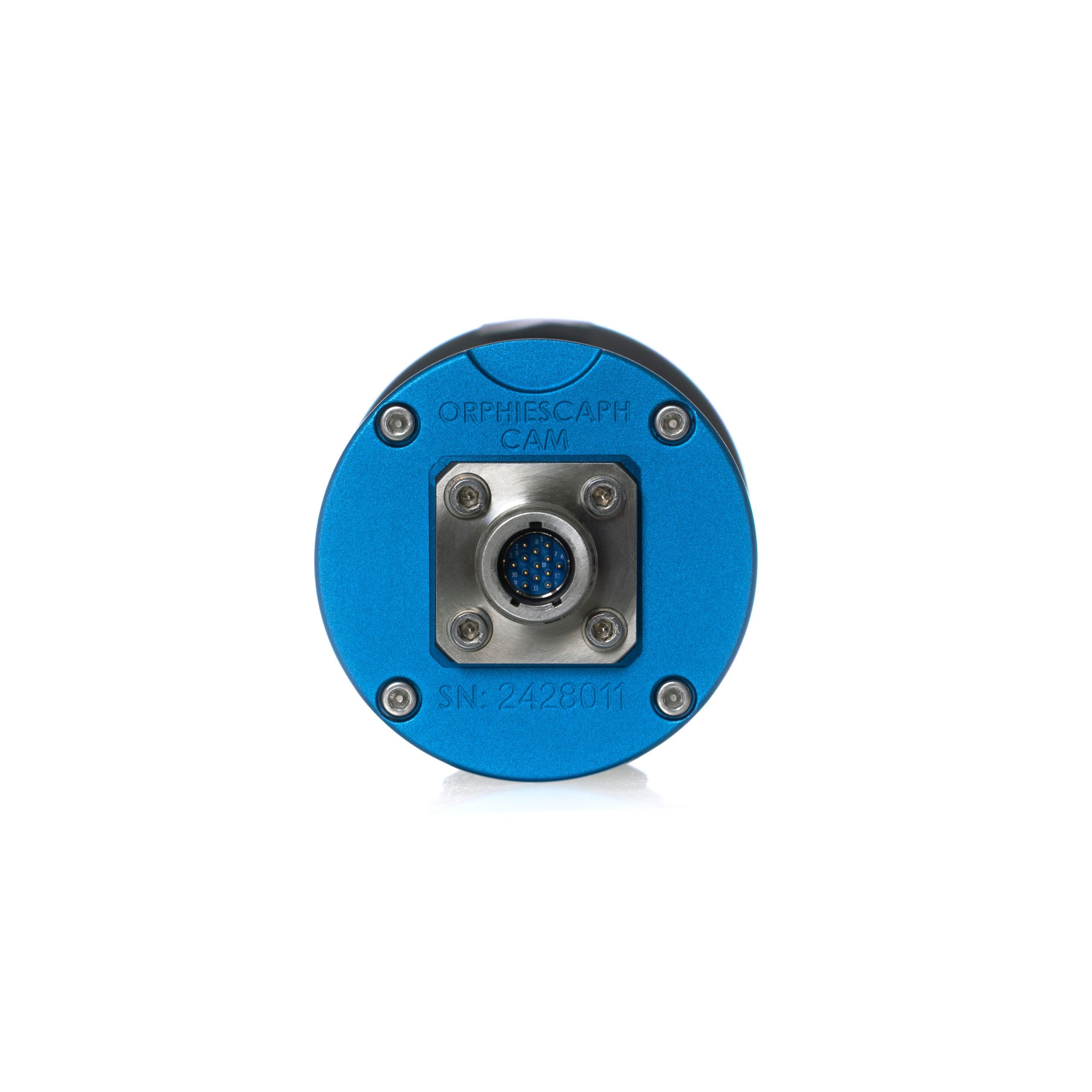

Connector: Aquamouse Glenair

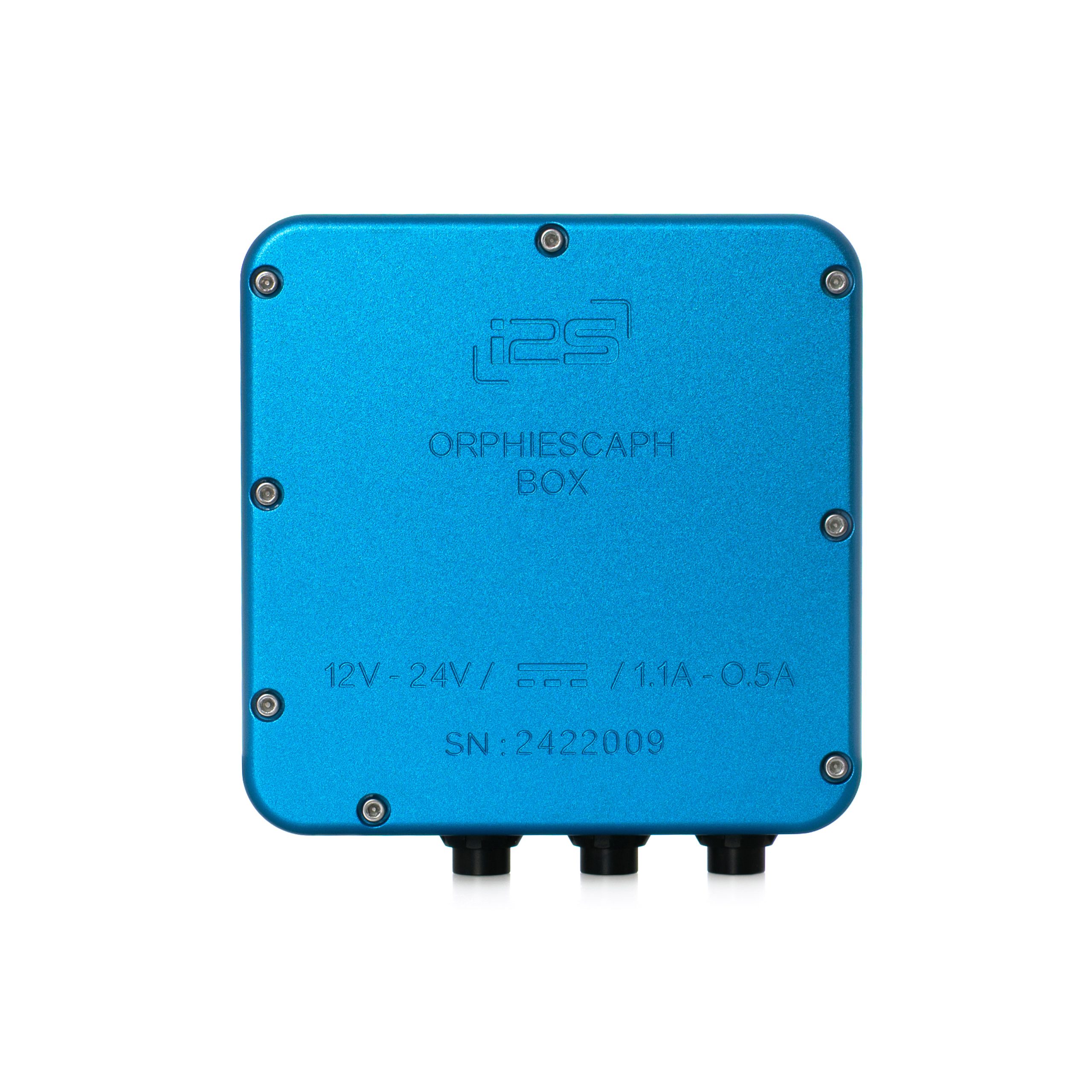

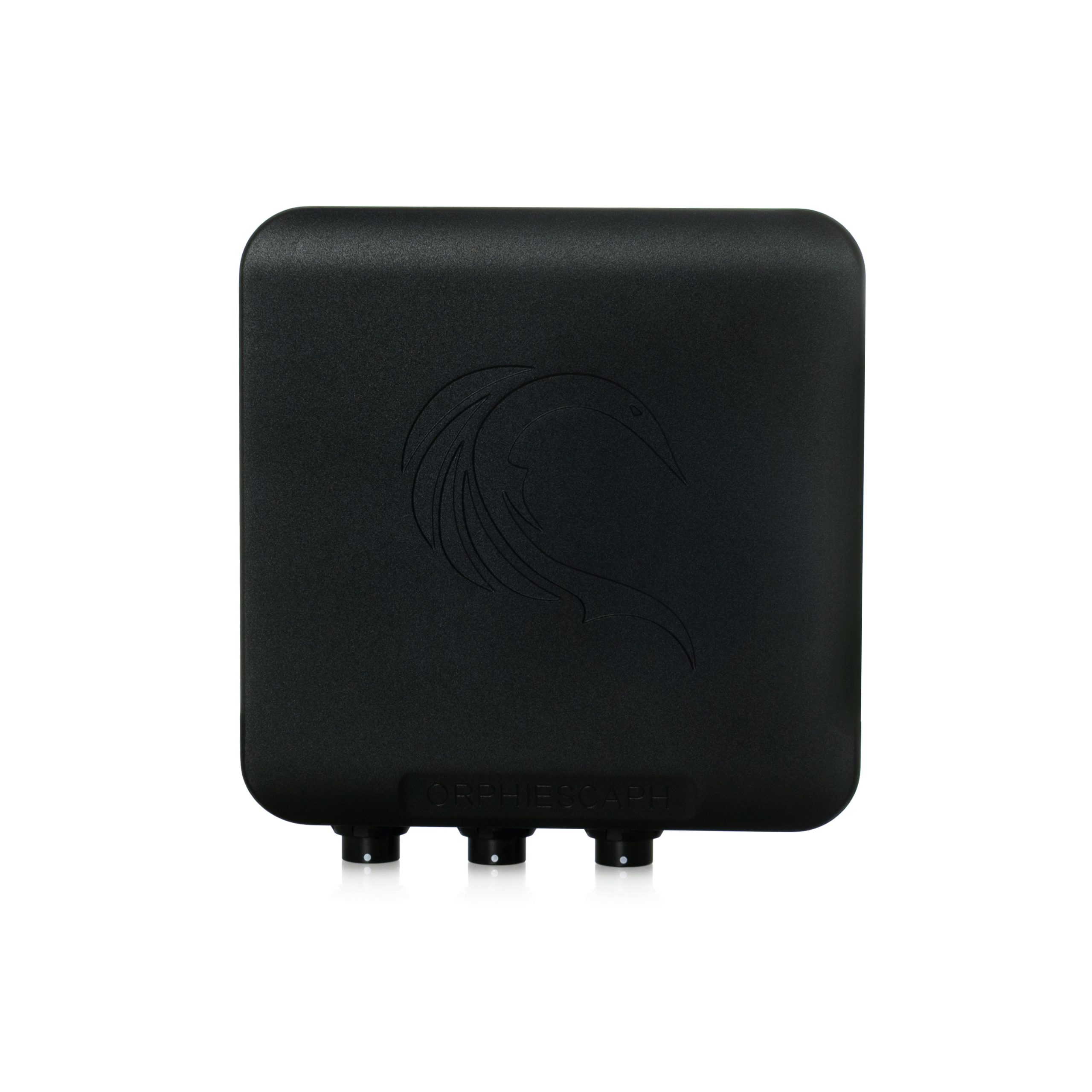

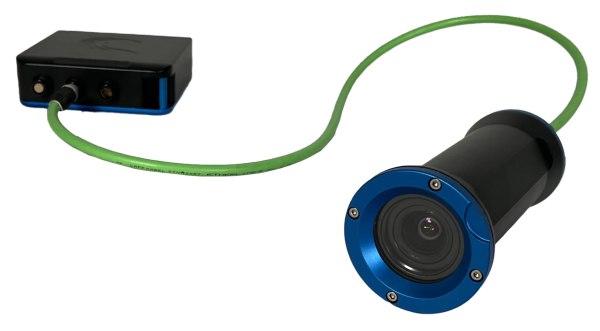

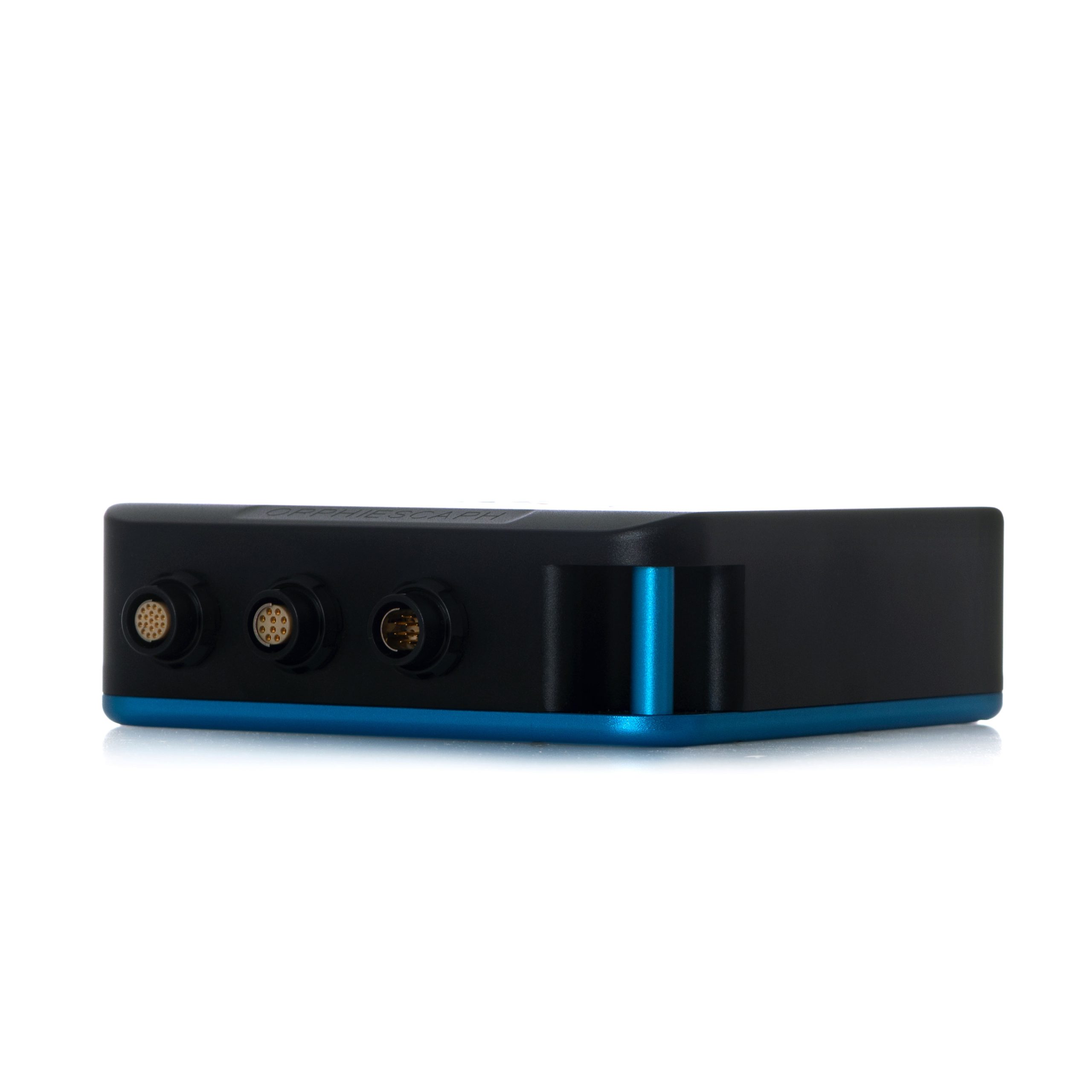

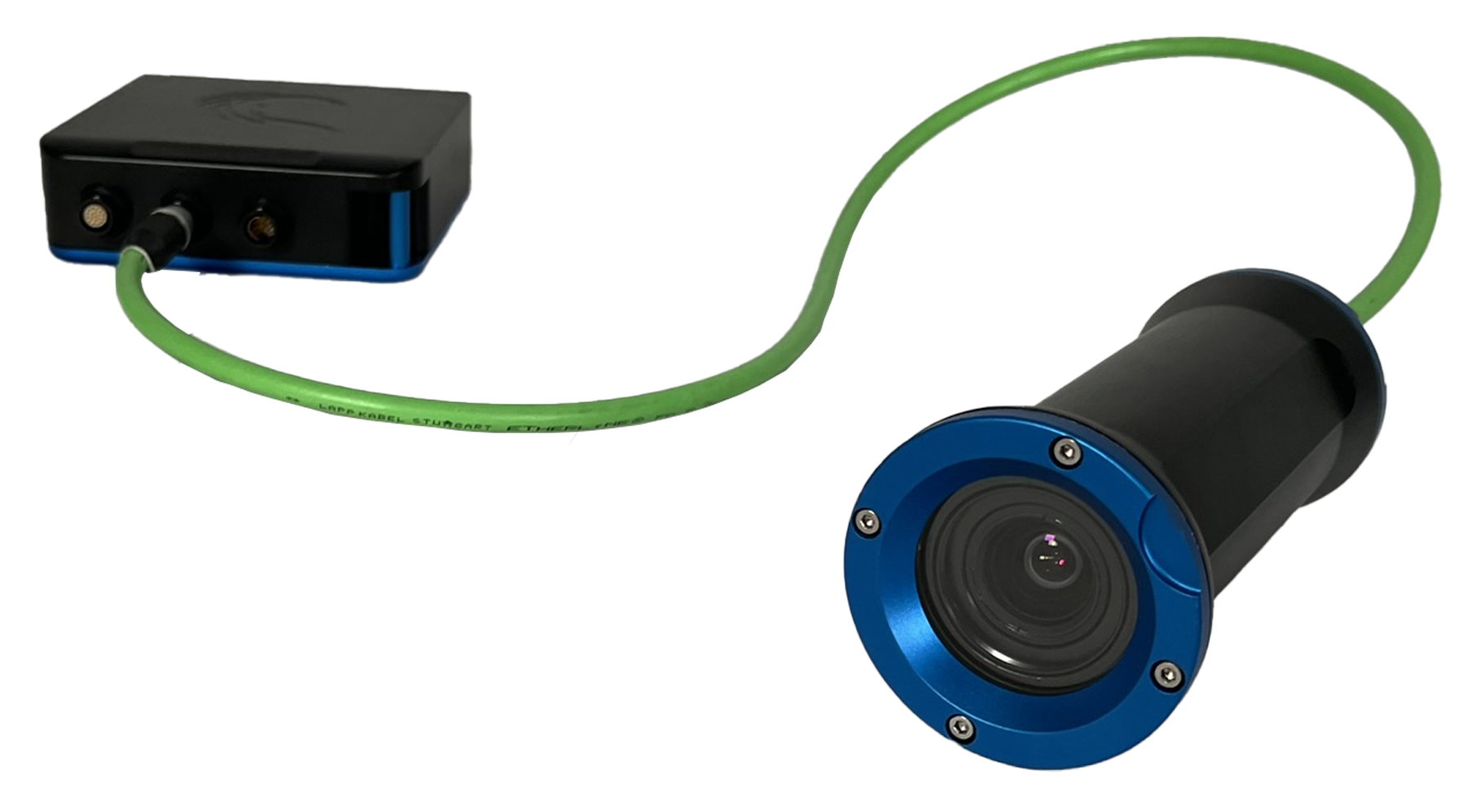

OephieScaph processing box

Input Voltage: 12-32 VDC
Power: 13W maximum

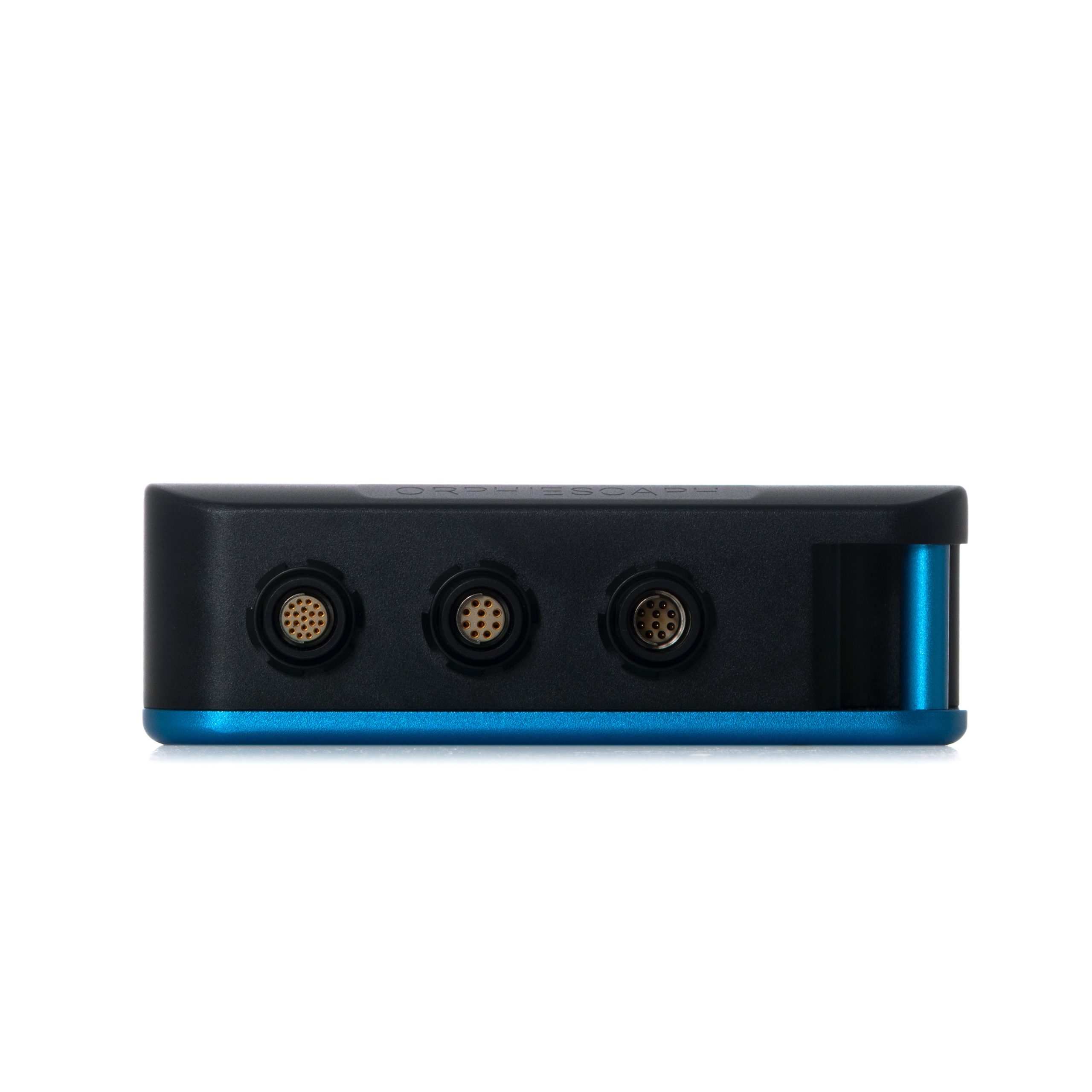

Standard Connector: Glenair G55 Aluminum, MacArtney DBH8M, (others on demand)
Data Transmission: Ethernet 100BASE-T (100Mbit/s)
Bandwidth: 12Mbits/s maximum
Operating Temperature: 0° to 24° Celsius
This is a Class A CE-certified device

The OrphieScaph is a uniquely designed divers tool for turbid waters and 300m missions. This camera system offers Orphie integration and advanced underwater imaging – even in the darkest depths. With real-time streaming, digital zoom, snapshot and record, professional reports can be accomplished efficiently and without fail.

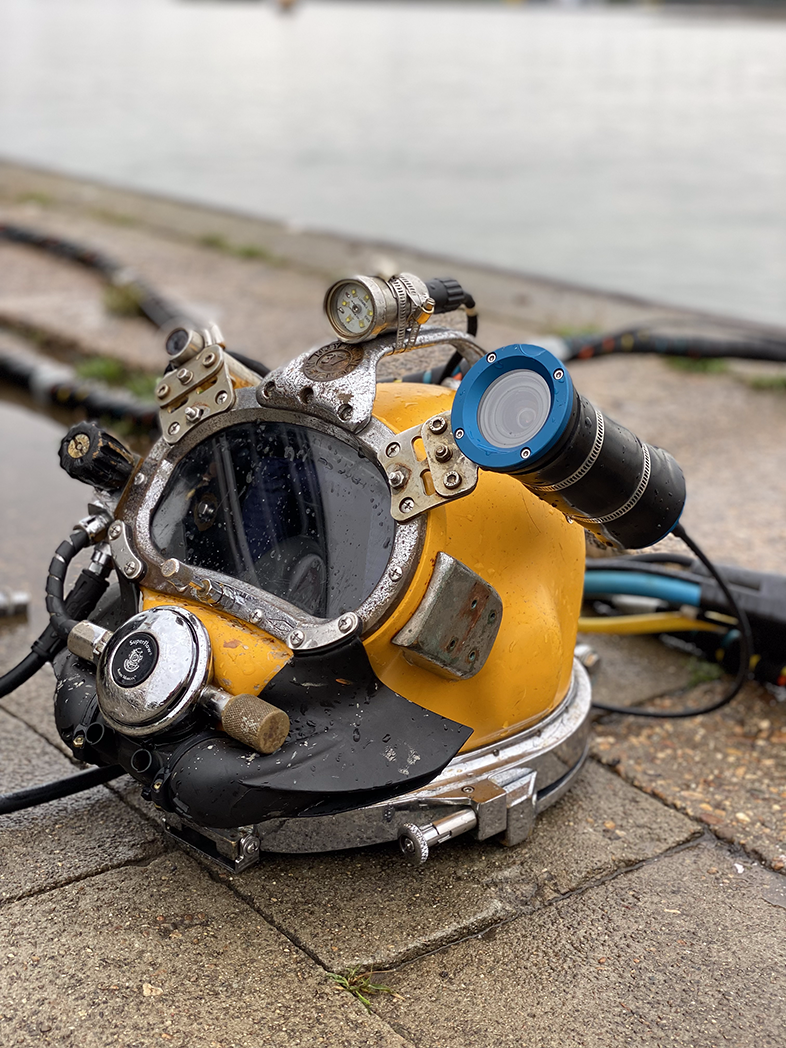

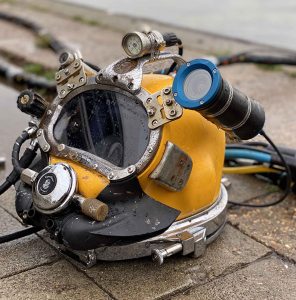

i2S OrphieScaph on Divers’ Helmet
