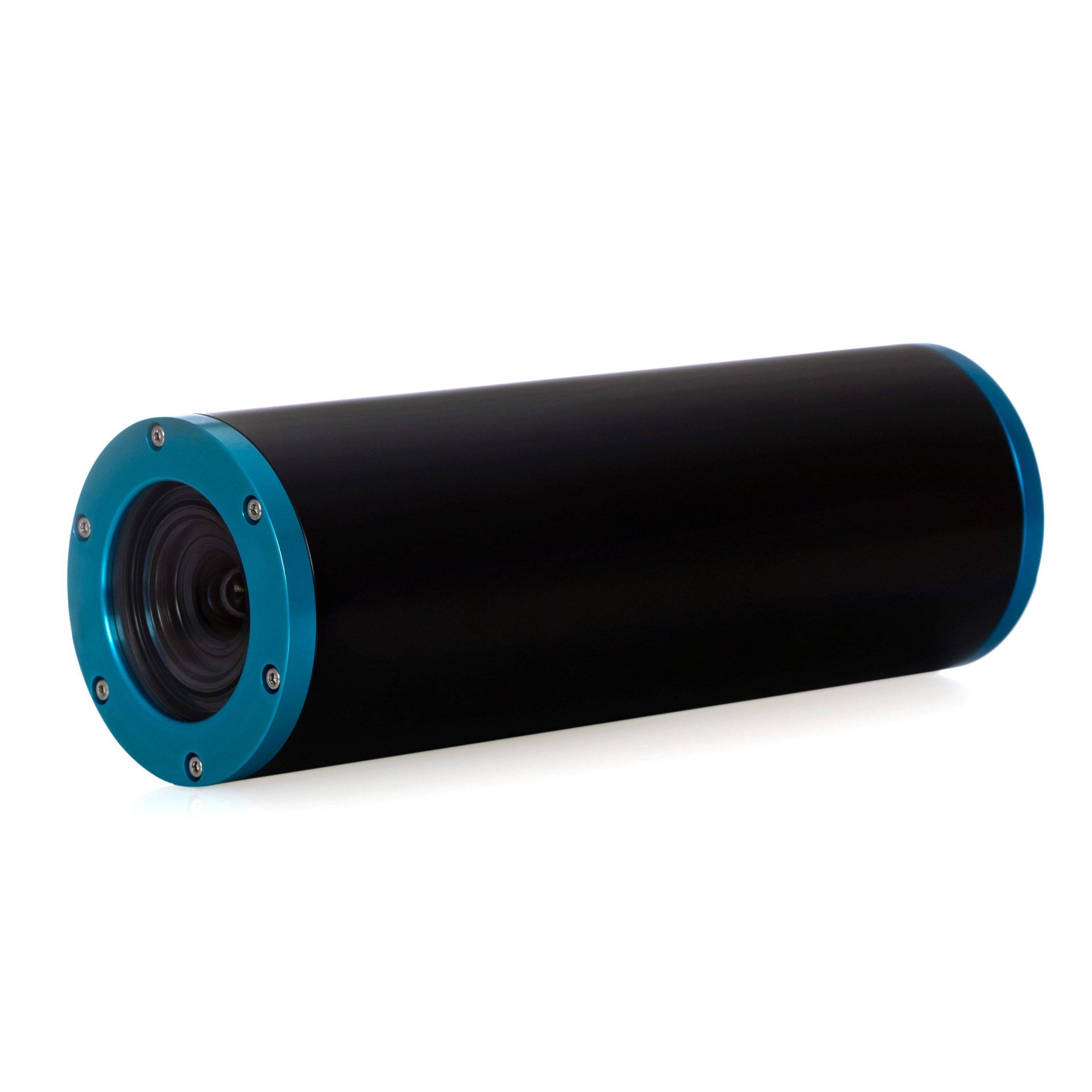

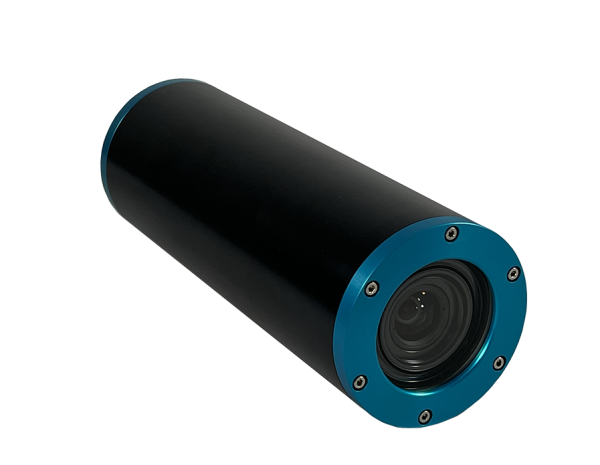

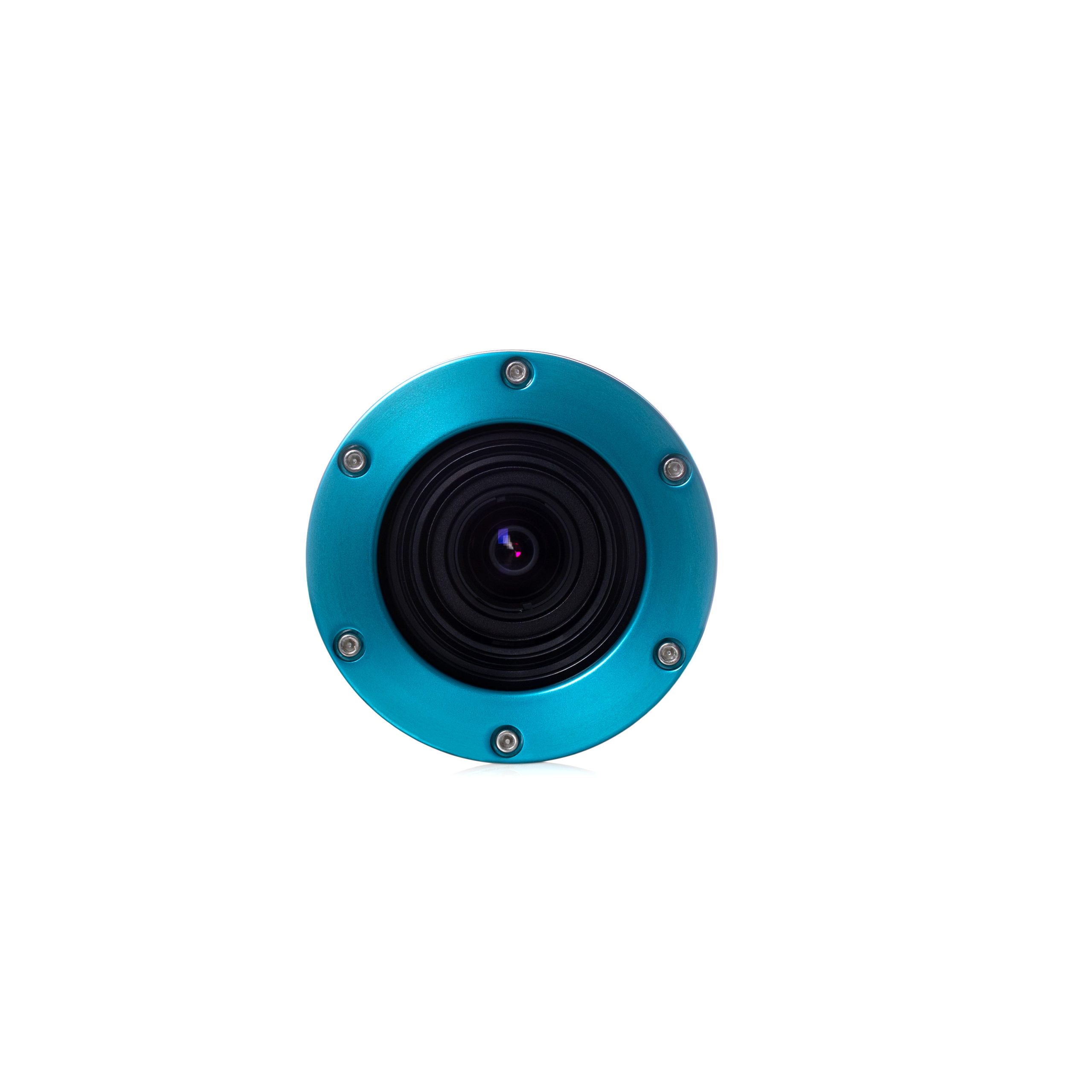

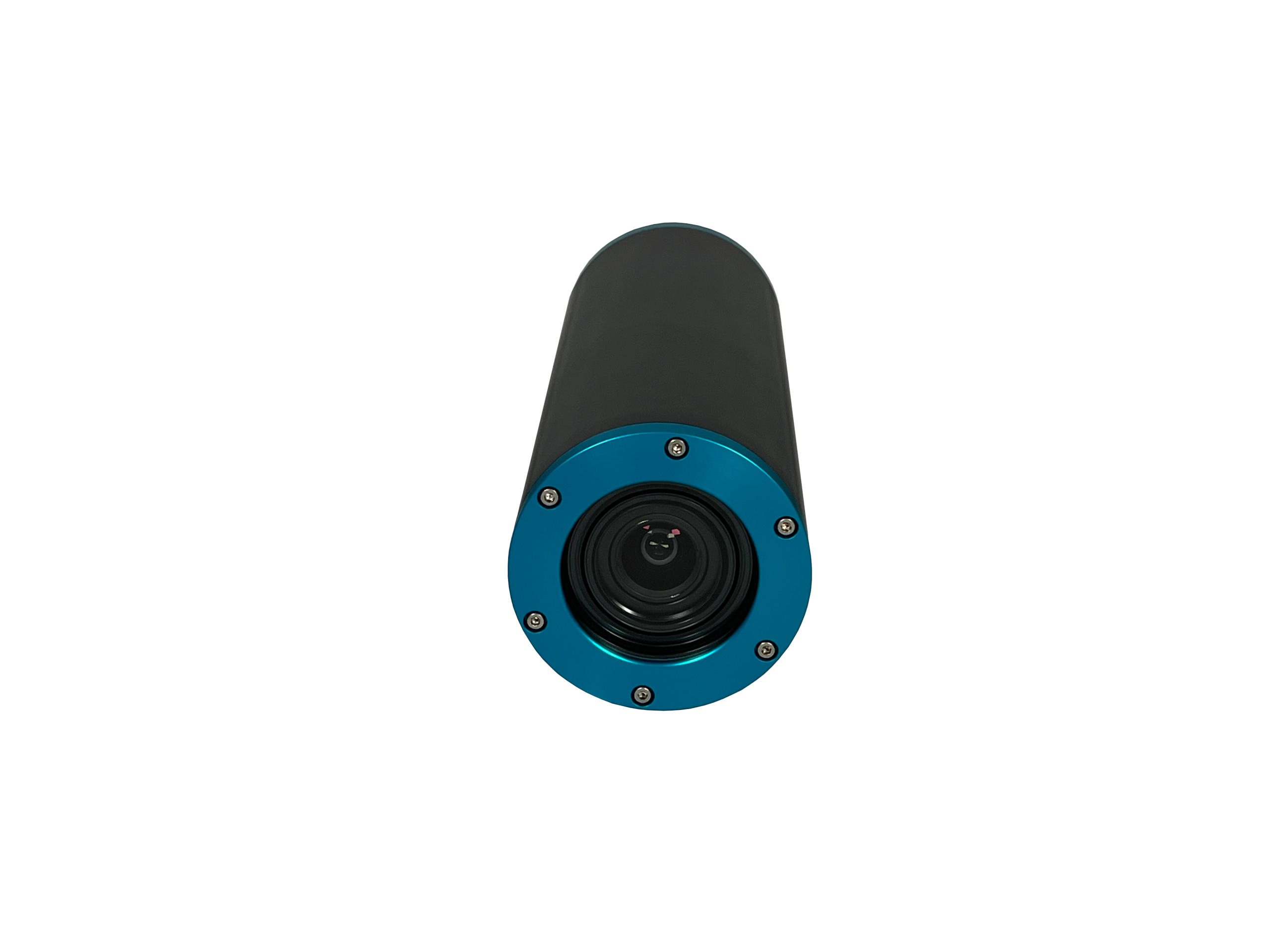

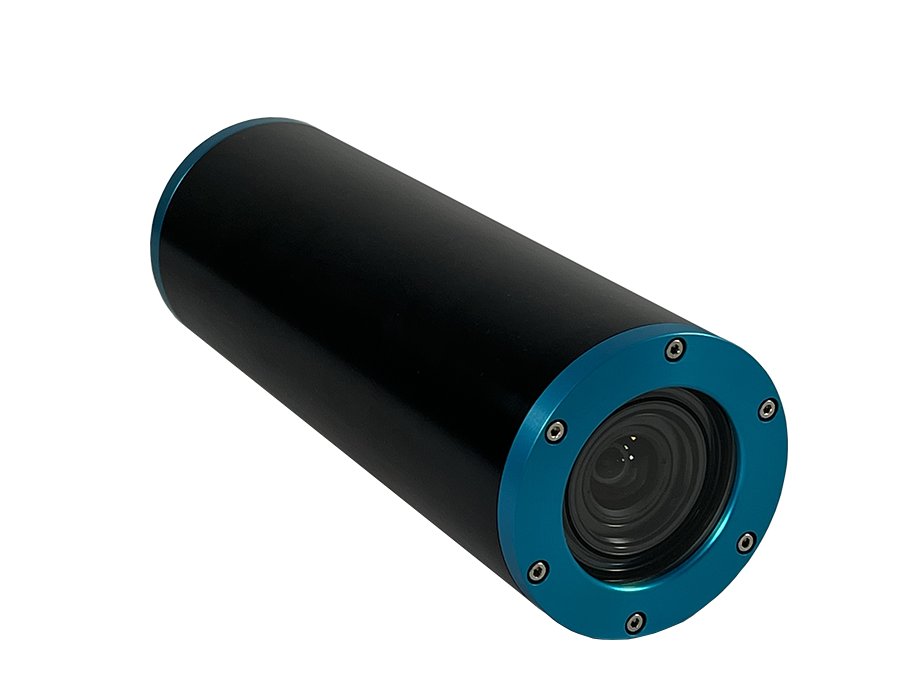

OrphieCam 300 Real-Time Video Streaming

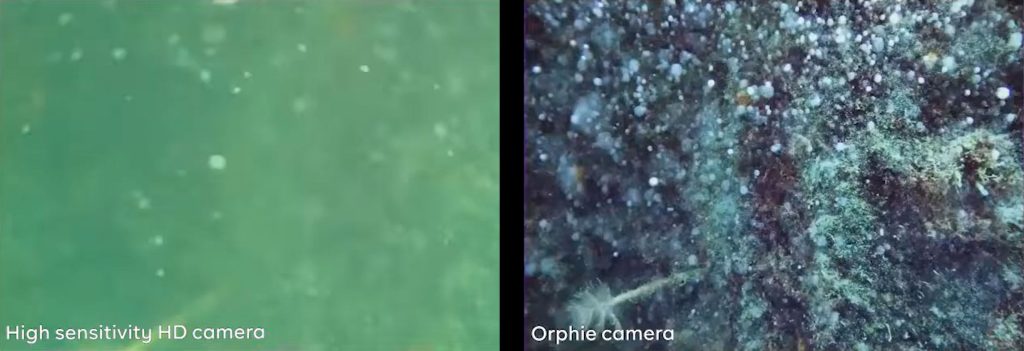

The i2S Orphie cameras provide unique patented technology that enhances underwater imaging systems, making operations safer and more efficient. These capabilities increase the viewing distance by a factor of three, allowing for better-quality inspections in less time.

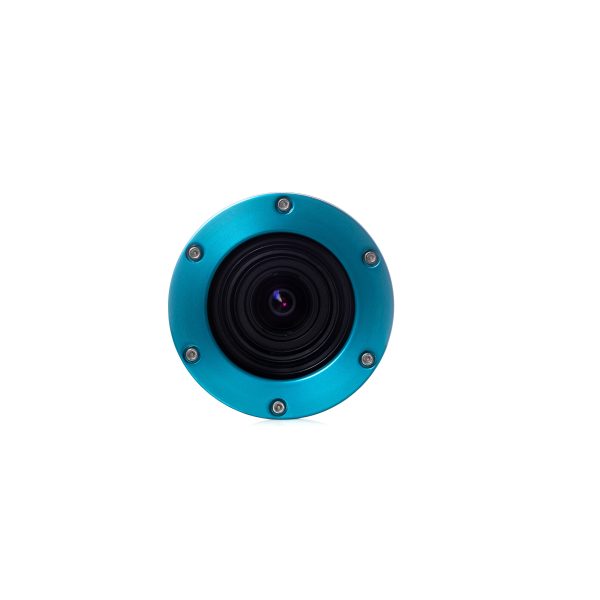

The ORPHIECAM 300 is designed for shallow waters, with exceptional visibility in turbid waters and challenging environments up to 300 meters. Perfect for inspections in waters with high sediment rates and murky conditions where observation is critical and difficult. Offering real-time video streaming with less than 130 ms of latency and low bandwidth.

Features

  • Low Latency
  • Depth Rated 300m
  • Real-time video streaming view

Technical Specifications

  • 2/3″ CMOS Color Sensor
  • Optical Resolution: 1080p
  • Frame Rate: 25fps
  • Latency: ~150ms
  • FOV: Air: 86° (Dia) x 75° (H) x 58° (V)
  • FOV: Water: 62° (Dia) x 54° (H) x 40° (V)
  • Depth Rating: 300m (984 feet)
  • Housing: Hard Anodized Aluminum

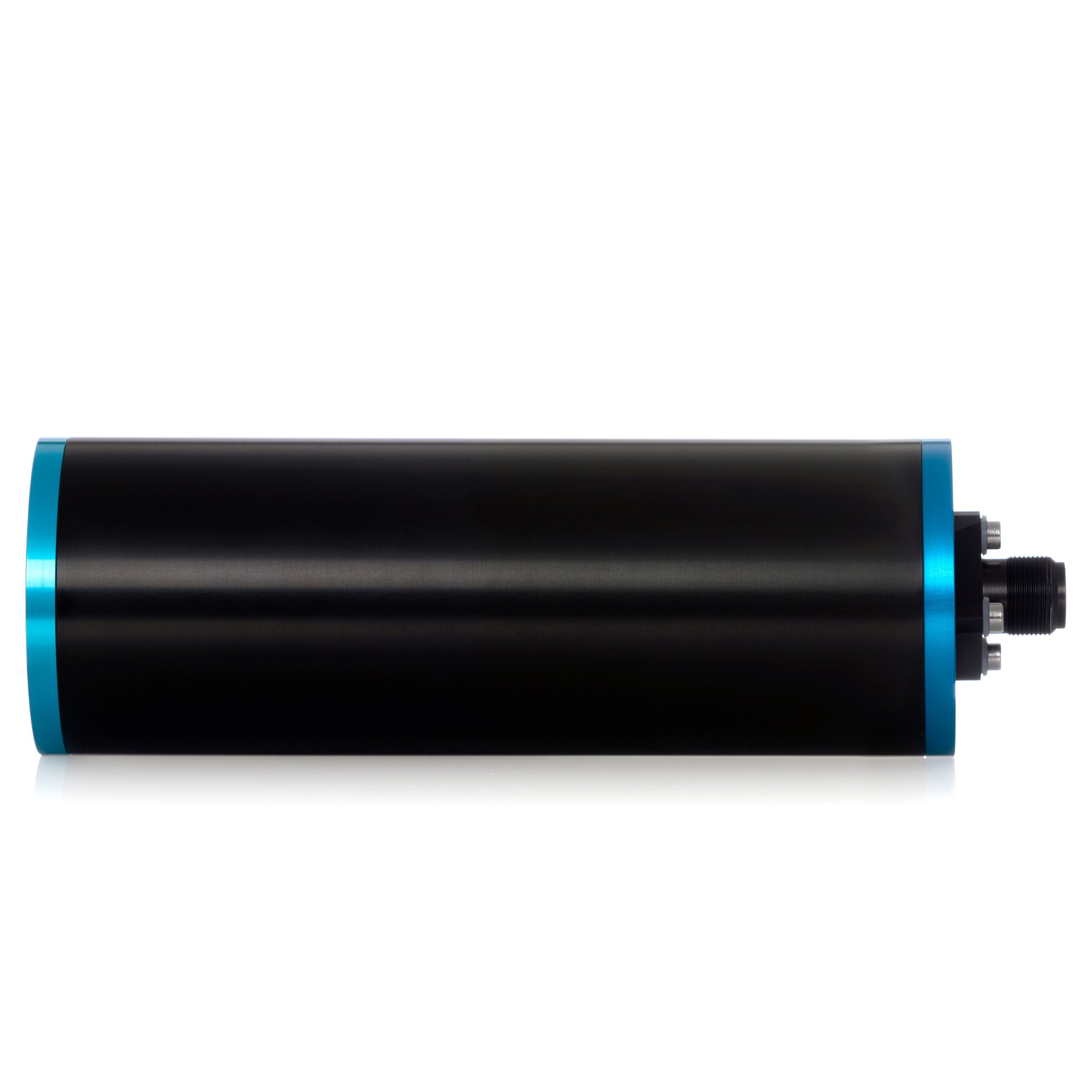

  • Dimensions w/o Connector: Length = 254.5mm, Diameter = 90mm
  • Weight: Air: 2.3kg, Water: 0.6kg

Optical & Video Specifications

  • Input Voltage: 12-32 VDC
  • Power: 13W maximum

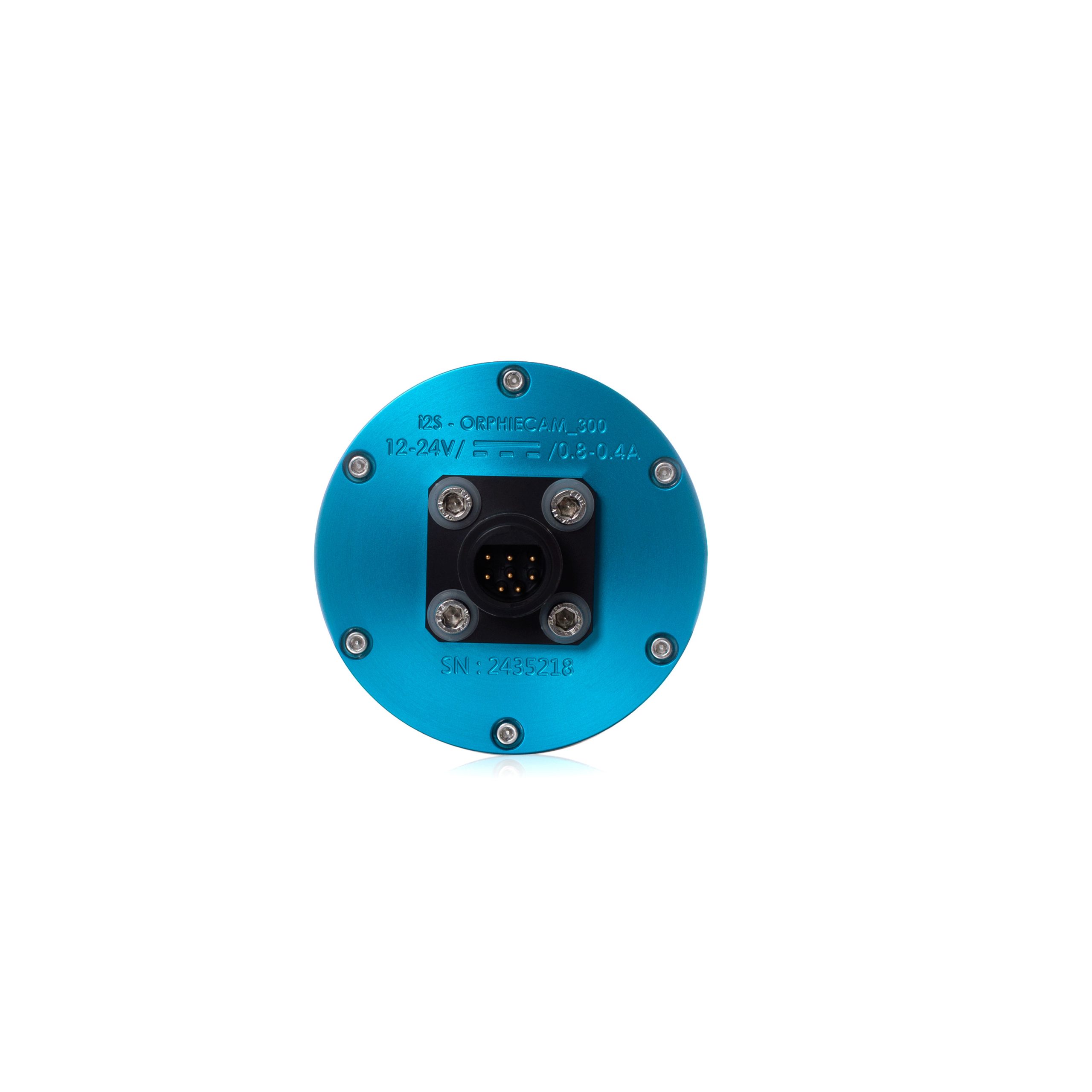

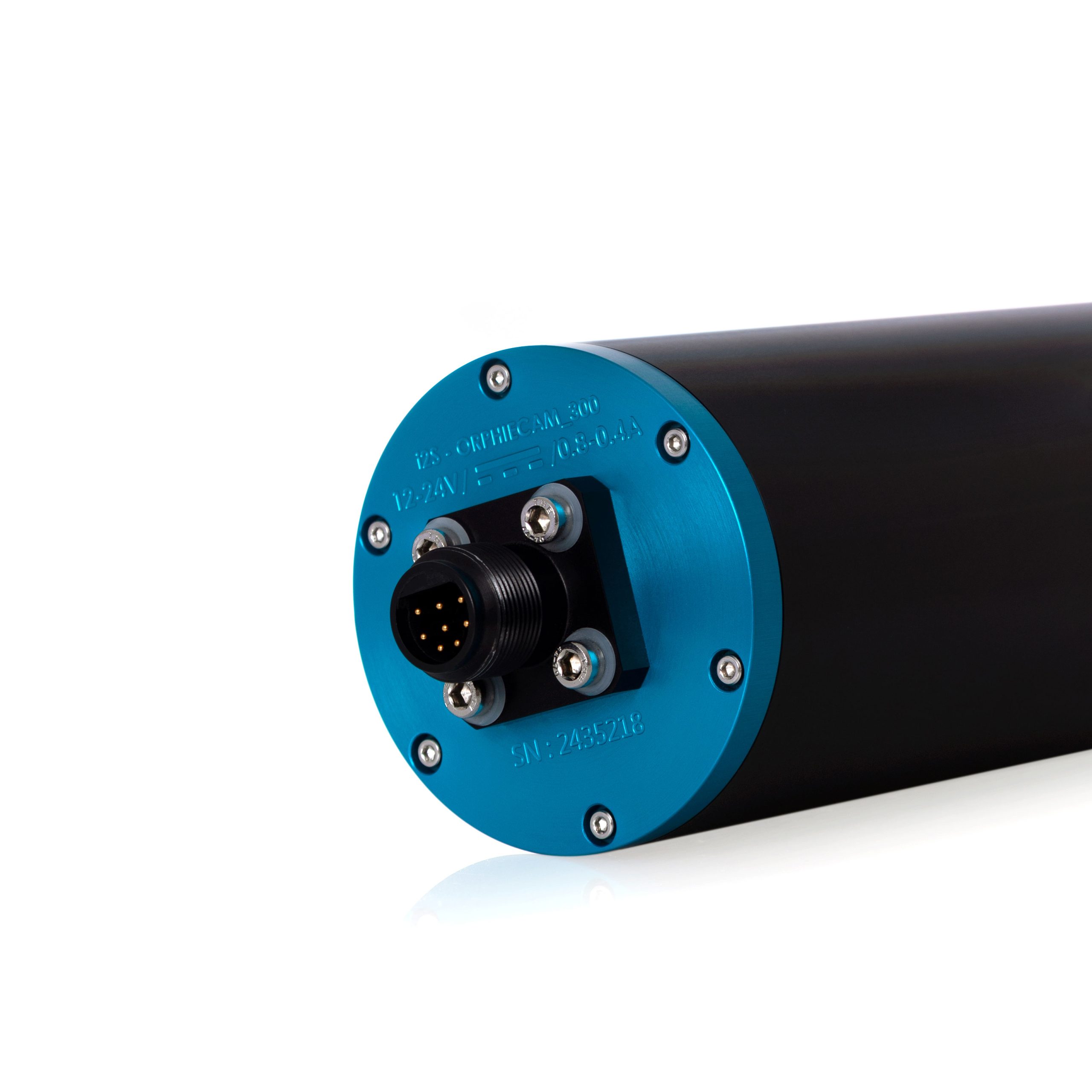

  • Standard Connector: Glenair G55 Aluminum, MacArtney DBH8M, (others on demand)
  • Data Transmission: Ethernet 100BASE-T (100Mbit/s)
  • Bandwidth: 12Mbits/s maximum
  • Operating Temperature: 0° to 24° Celsius

ORPHEO

i2S Orphie software for all Orphie CamerasSoftware for viewing, setting parameters, and controlling Orphie cameras.

Orpheo is the visualization, parameter setting, and control software for all products in the Orphie range. Easily configure your Orphie products to meet your specific needs and optimize the performance of your equipment.
