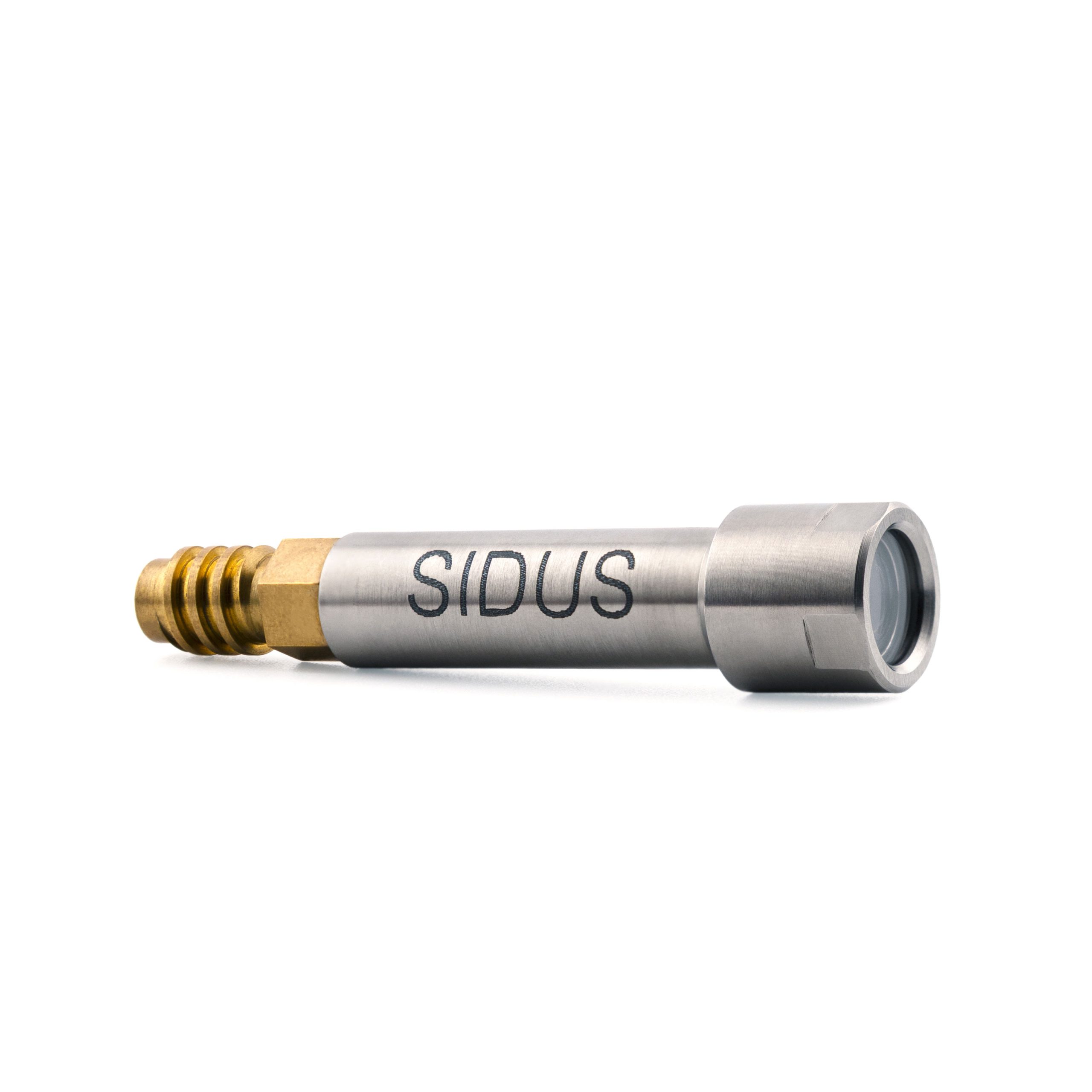

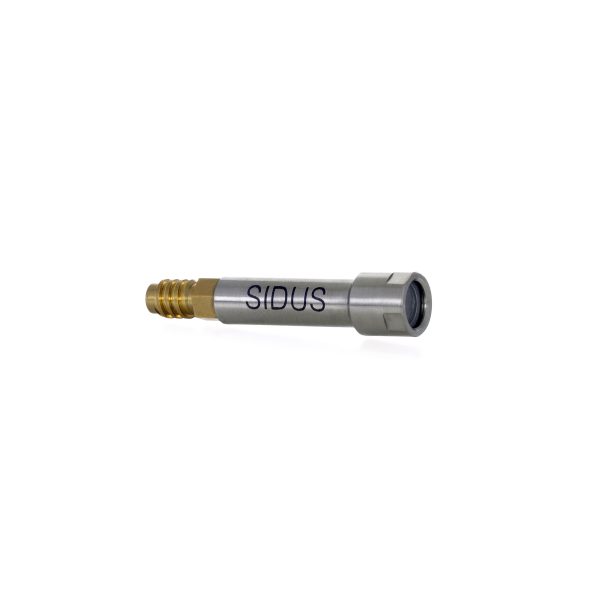

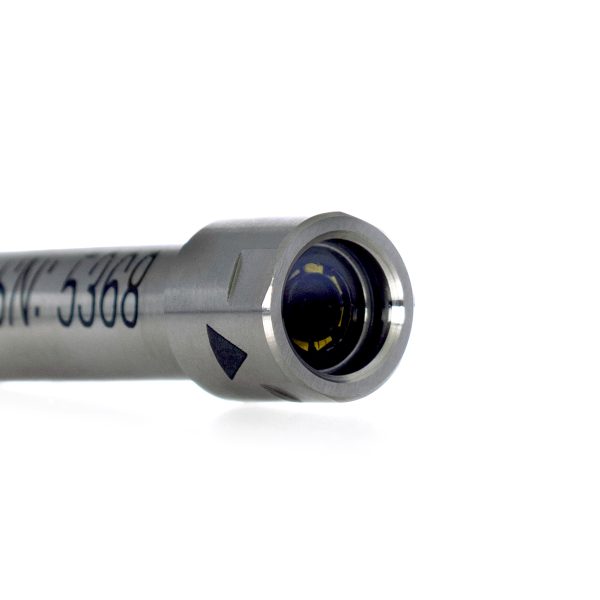

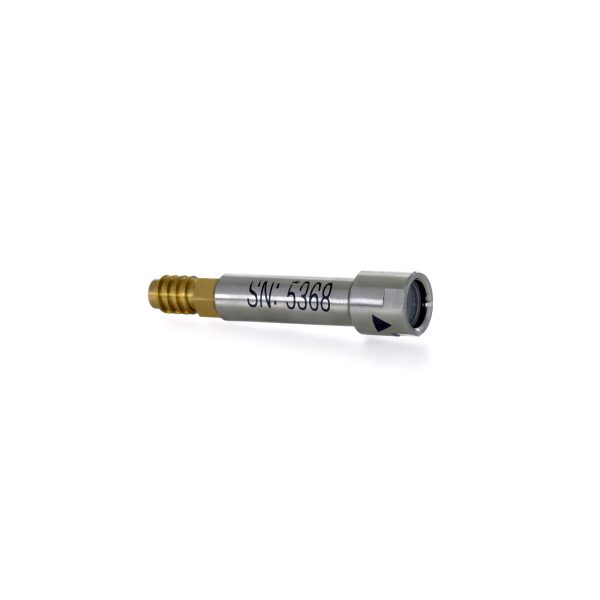

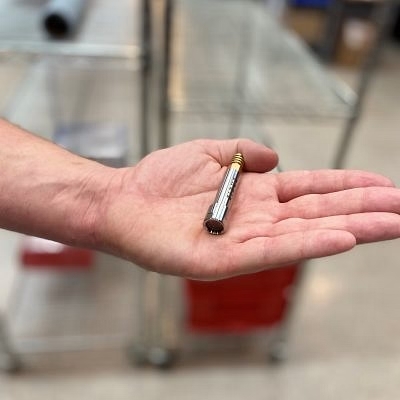

SS560 Ultra Mini Color Camera with Built-in Adjustable White HBLED Ring Light
The SS560 Ultra Mini Color Camera unites an image-rich, high-clarity color camera with integrated, variable intensity, built-in, adjustable white HBLED.
Features:
- Depth rated 6000 meters
- Small, compact, and lightweight
- 640 x 480-pixel array, with 480 TVL resolution

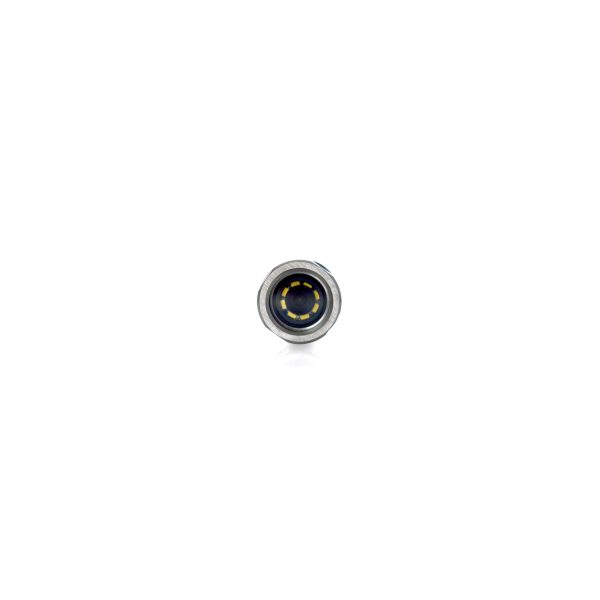

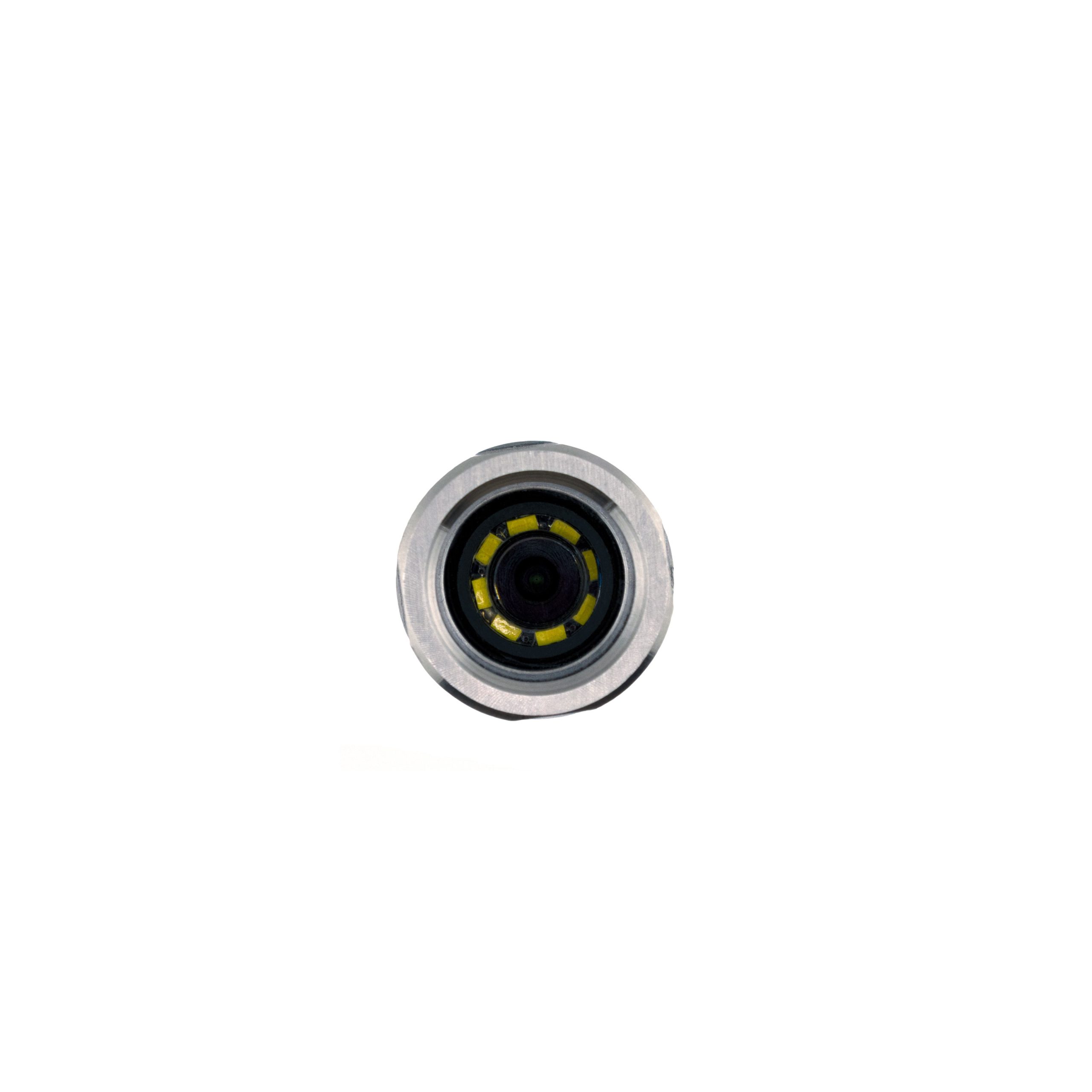

- Built-in adjustable 8x White LED ring light
- Dynamic Range – 75 dB
- Composite video output, NTSC or PAL (specify at time of order)
- Real-time parameter setting, On Screen Display (OSD) with hand controller
- AOV in air – 101° 91′ HAOV, 84° 33′ VAOV, and 119° DAOV
- AOV in water – 71° HAOV, 57° VAOV, and 80.1° DAOV
- 6L4V Titanium housing (standard)
|
Electrical Specifications:
|
|

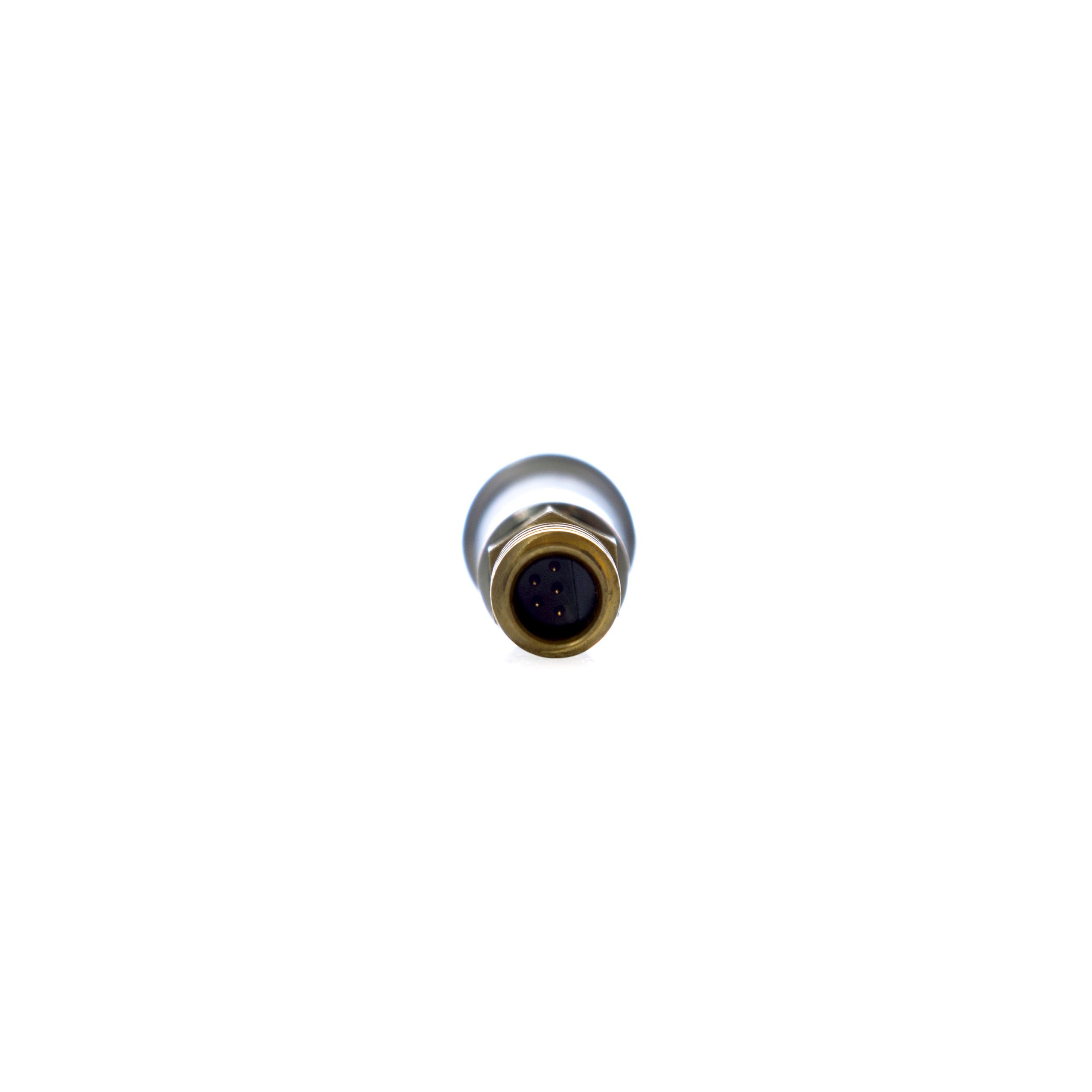

| Image Sensor: | 1/4″ Color CMOS, progressive scan |
| Resolution: | 640 x 480 pixel array |
| Sensitivity: | 0.04 lux |
| Signal to Noise Ratio: | 44.8 db |
| Dynamic Range: | 75 db |
| Camera Power Supply Voltage: | 5 – 32VDC |
| Camera Power Supply Current: | 100mA maximum |
| Composit Video Output: | 1.0 V pk-pk, 75 ohms |
| NTSC or PAL (specified at time of order) | |
| LED Illumination: | 8 x White LED |
| Parameter Settings: | Real-time with On Screen Display (OSD), with hand controller |
| Standard Connector: | HUMG-5-BCR |
| Connector Pinout: | Pin 1: Composit Video |
| Pin 2: Poer & Video Common | |
| Pin 3: Camera Power, 5 to 32VDC | |
| Pin 4: LED Power | |
| Pin 5: N/C | |
| Optical Specifications | |
| Lens: | 2.3mm, F/10 |
| Fixed Focus: | 25-200mm Depth of Field, factory adjustable to other ranges |
| Angle Of View (AOV) in Air: | 101°, 91′ HAOV, 84° 33′ VAOV, 119° DAOV |
| Angle Of View (AOV) in Water: | 71° HAOV, 57° VAOV, and 80.1° DAOV |
| Window: | Colorless Sapphire |
| Environmental Specifications | |
| Water Depth Rated: | 6000 msw |
| Storage Temperature: | -30° C to +60° C (-86° F to 140° F) |
| Operating Temperature: | -10° C to +45° C (-50° F to 113° F) |
| Mechanical Specifications | |
| Housing Material: | 6L4V Titanium housing (standard) |
| Diameter: | 0.59” (15.0mm) |
| Length: | 2.00” (50.8mm) |
| Weight in Air: | ~7.0lbs (3.2kg) |
| Weight in Water: | ~7.0lbs (3.2kg) |
The SS560 Ultra Mini Camera is a great solution for end users looking for a small, compact, and effective subsea color video camera that can withstand the elements and perform! The standard 6L4V titanium housing enables this compact, lightweight miniature color video camera to operate in the harsh environment of the deep sea. The built-in adjustable White HBLED ring light has 8 settings for illumination providing real-time, On Screen Display (OSD) via hand controller.
This compact color, miniature video camera is designed and built for the harshest industrial environments. Video resolution, sensitivity, and dynamic range are all much improved. The higher the dynamic range, the more shades of grey can finally be differentiated by the camera system. Eventually, this means better contrast and perfect grey shade gradients in the image.
Systems designers and operators will thank SIDUS for designing an integral in-line cable for simplified system integration. To suit a vast range of vehicles and other underwater scenarios power compatibility is broad too, running off any DC power supply from 5-32 volts*.
