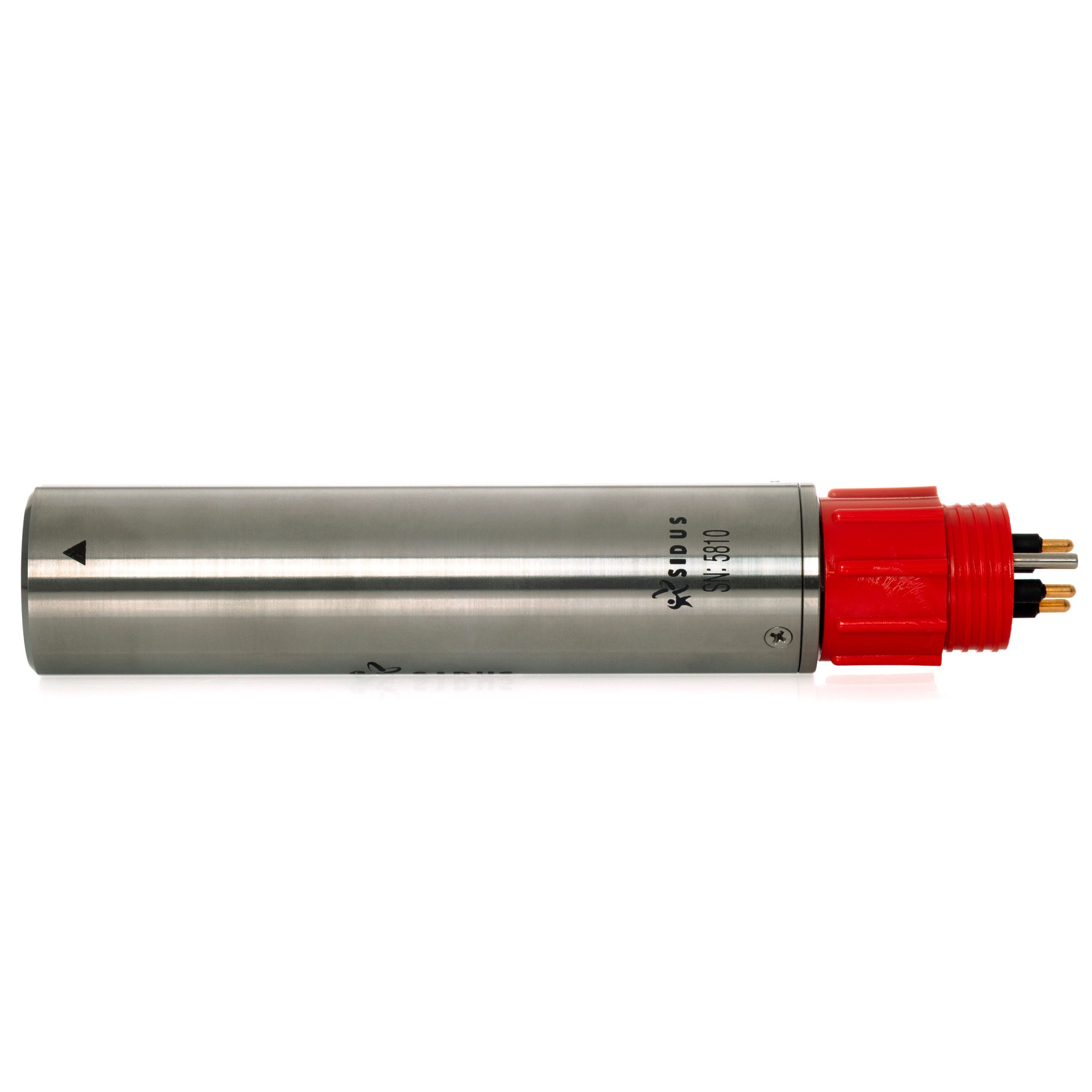

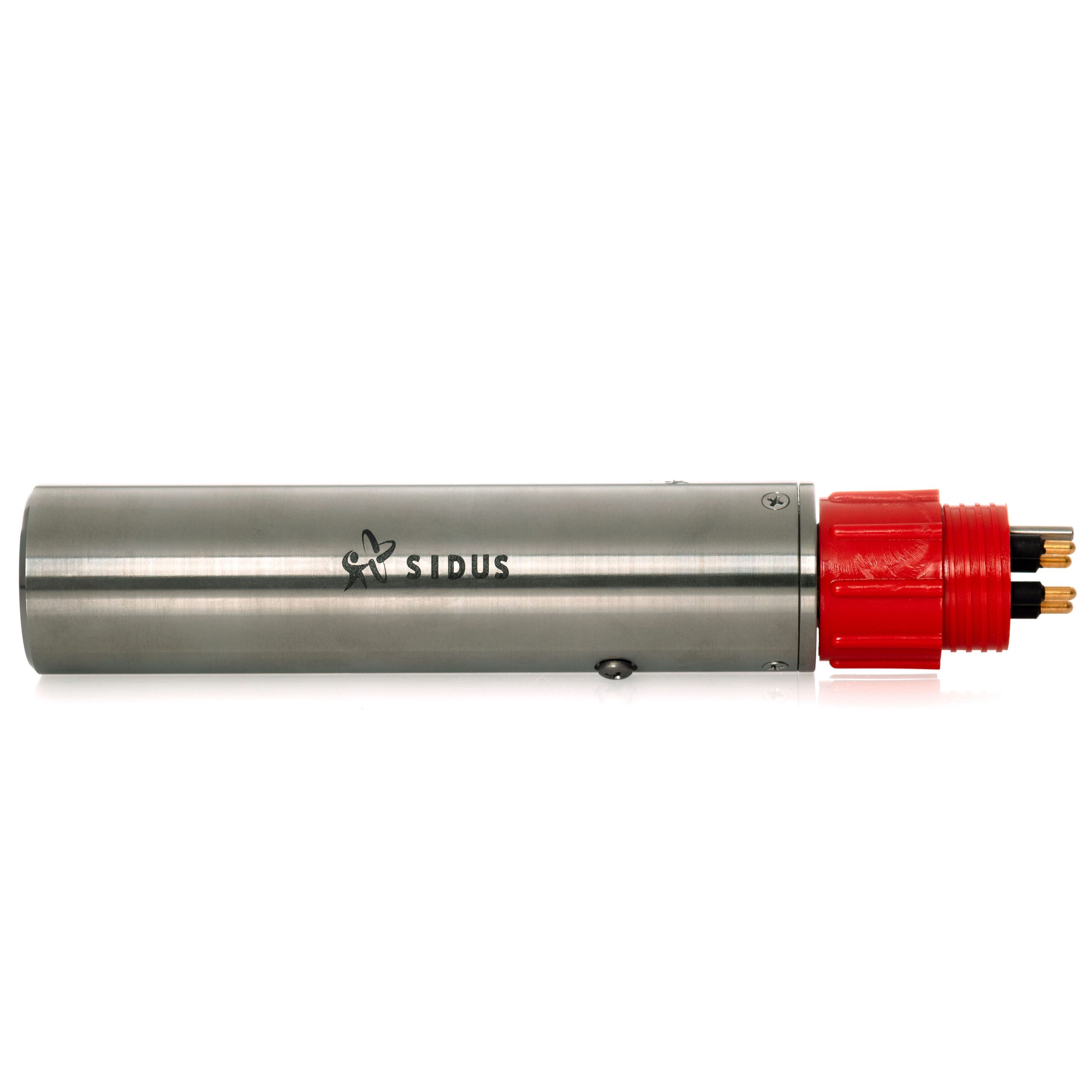

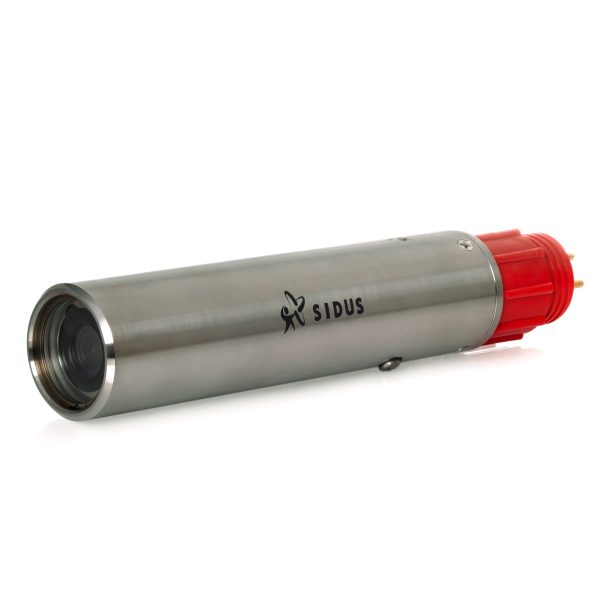

SS408 B&W Low Light IR Sensitive Camera

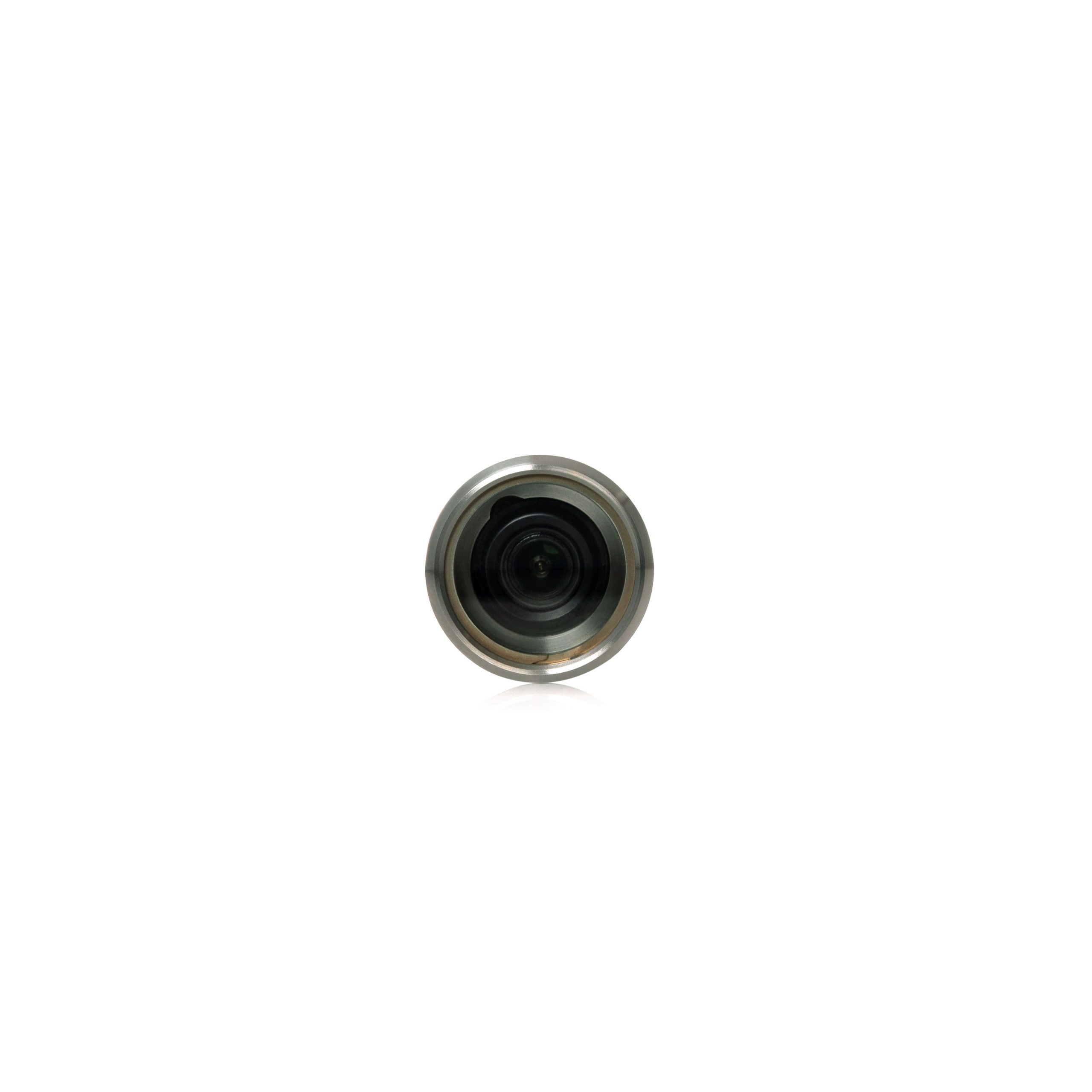

Sidus Solutions’ SS408 B&W cameras are lightweight and robust inspection tools. Designed for high sensitivity in low light, this camera employs a 420 TVL black & white module that has a 1/3” Sony ExView HAD CCD imaging sensor. The video output is provided in EIA or CCIR formats, with with a standard 2.97 mm lens that offers 98° FOV in air.
The durable acetal housing is corrosion resistant, and will provide years of quality service. The camera is available as part of a complete system or as a low cost replacement for the camera you now use.
Sidus Solutions, LLC. supplies complete turnkey and integrated inspection systems, customized to any specific need. Sidus is known for offering our customers flexibility and outstanding reliability, while also striving to enhance safety and security, and increase productivity. Ask your representative today about other Sidus Solutions product and service offerings.
|
Electrical:
|
|
| Horizontal Resolution: | 420 TV Lines (NTSC or PAL) |
| Sensitivity: | .0003 lux/ FacePlate |
| Sensor Type: | 1/3” Sony ExView HAD CCD |
| Signal to Noise: | >48 dB (AGC Off) |
| Power Input: | 9-36 VDC / 120mA (max) |
| Video Output: | 1.0 Vp-p, 75 ohm |
| Connector: | Customer selectable – 4 pin Seacon Brantner is standard |
| Environmental: | |
| Operating Depth: | Up to 350 m (1.000 ft) |
| Temperature Range: | -10˚C to +50˚C (+14˚F to +122˚F) operating |
| -20˚C to +60˚C (-4˚F to +140˚F) storage | |
| Housing Material: | Acetal |
| Window Material: | Optical grade acrylic |
| O-Ring Material: | Buna |
| Optical: | |
| Lens: | 2.97mm – See datasheet for more lens options. |
| Field of View: | 98˚ diagonal in water, 130˚ in air |
| Iris Control: | Fixed |
| Focus Control: | Fixed |
| Min. Working Distance: | 8″ |
| Mechanical: | |
| Dimensions: | 1.5 in diameter x 4.0 in length (38mm x 135mm) |
| Weight in Air: | 9 oz (0.25kg) |
| Weight in Water: | 3 oz (0.07kg) |
